| Manufacturer Part Number: | 7813S-1-051E |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

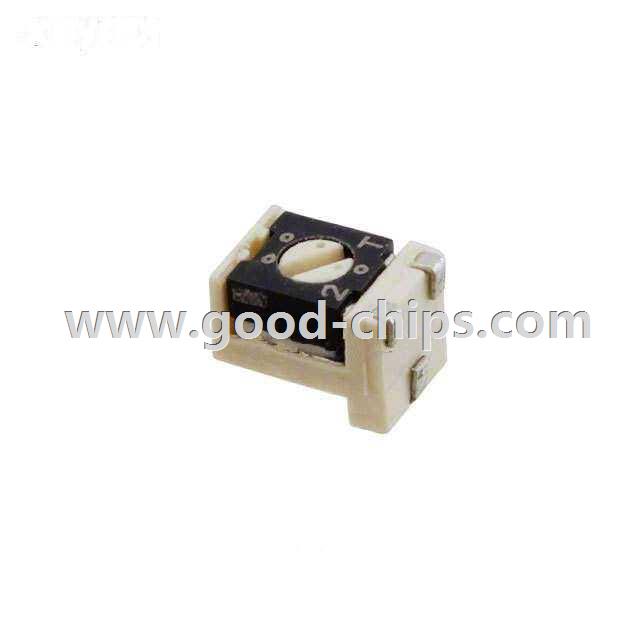

| Description: | Dip Switch SPDT 2 Position Surface Mount, Right Angle Rotary for Tool Actuator 100mA 16VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7813S-1-051E Datasheet |
| Internal Part Number | 898-7813S-1-051E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 7813S Series Material Declaration | |
| 3D Model | 7813S001yyy.stp 7813S001yyy.igs | |
| PCN Design/Specification | 7813 Model 18/Jan/2012 | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Bourns Inc. | |
| Series | 7813 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPDT | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 16VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | - | |
| Contact Finish | - | |
| Height Above Board | 0.211" (5.35mm) | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | J Lead | |
| Pitch | - | |
| Washable | No | |
| Features | - | |
| Body Material | - | |
| Length | 0.126" (3.20mm) | |
| Operating Temperature | -55°C ~ 125°C | |
| Mechanical Life | 50 Cycles | |
| Electrical Life | - | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7813S-1-051E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7813S-1-051E is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 7813S-1-051E is new and unused, you can buy 7813S-1-051E Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7813S-1-051E.
