| Manufacturer Part Number: | 7803 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Quick Connects, Quick Disconnect Connectors |
| Available Quantity: | 9094 Pieces |
| Unit Price: | Quote by Email |

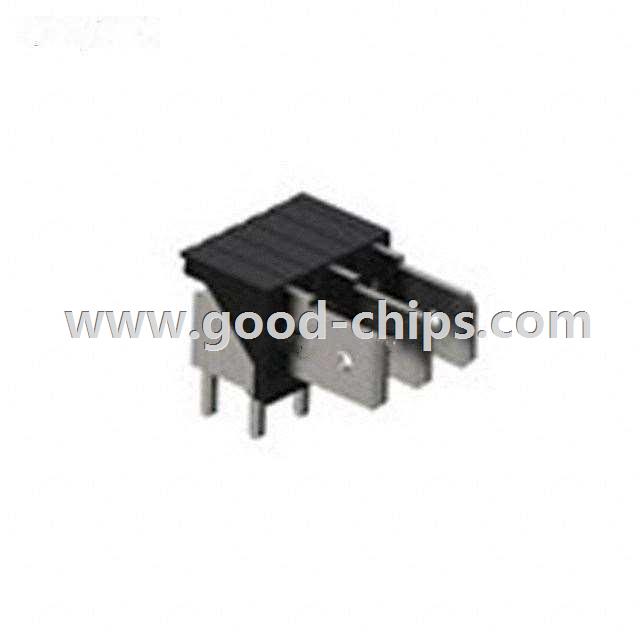

| Description: | 0.250" (6.35mm) Quick Connect Male Solder Connector Non-Mating End Insulated |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7803 Datasheet |
| Internal Part Number | 898-7803 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance Statement | |
| Online Catalog | Quick Connects - Keystone Electronics | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Quick Connects, Quick Disconnect Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Header | |
| Gender | Male | |
| Tab Width | 0.250" (6.35mm) | |
| Tab Thickness | 0.032" (0.81mm) | |
| Tab Length | 0.307" (7.80mm) | |
| Length - Overall | - | |
| Termination | Solder | |
| Wire Gauge | - | |
| Insulation | Non-Mating End Insulated | |
| Mounting Type | Through Hole, Right Angle | |
| Features | 3 Tabs | |
| Color | Black | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Insulation Diameter | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7803 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7803 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 7803 is new and unused, you can buy 7803 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7803.
