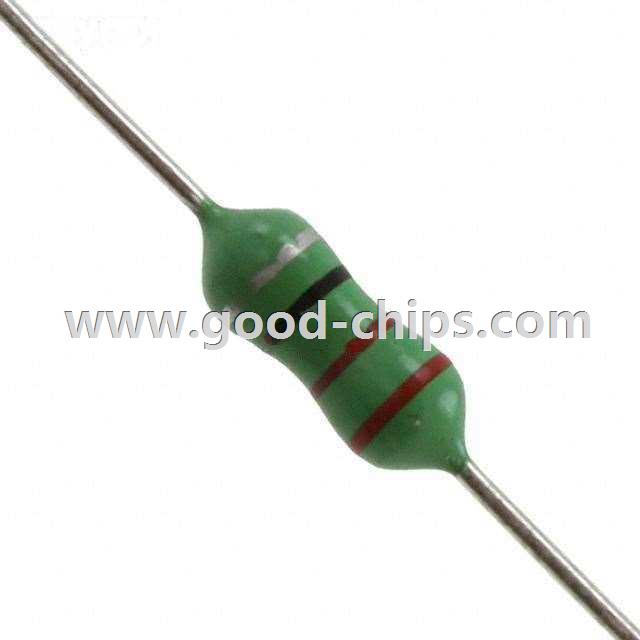

| Manufacturer Part Number: | 77F470J-TR-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 47µH Unshielded Wirewound Inductor 340mA 1.3 Ohm Max Axial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 77F470J-TR-RC Datasheet |
| Internal Part Number | 898-77F470J-TR-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 77F.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | 77F Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | 77F | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 47µH | |
| Tolerance | ±5% | |
| Current Rating | 340mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.3 Ohm Max | |
| Q @ Freq | 45 @ 2.52MHz | |
| Frequency - Self Resonant | 6.3MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 2.52MHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 77F470J-TR-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
77F470J-TR-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 77F470J-TR-RC is new and unused, you can buy 77F470J-TR-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 77F470J-TR-RC.
