| Manufacturer Part Number: | 773-E15-113R001 |
|---|---|
| Manufacturer: | Norcomp Inc. |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9045 Pieces |
| Unit Price: | Quote by Email |

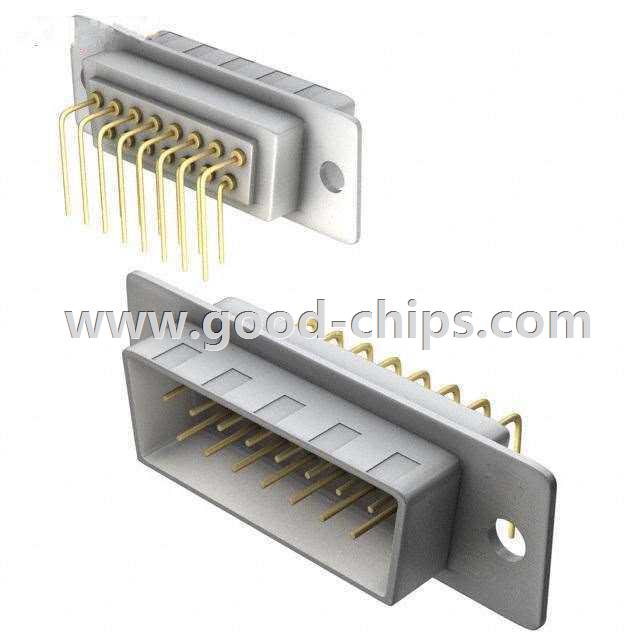

| Description: | 15 Position D-Sub Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 773-E15-113R001 Datasheet |
| Internal Part Number | 898-773-E15-113R001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAL-D™ IP67 Connectors | |
| Video File | IP67 D-Sub Assembly | |
| Featured Product | SEAL-D® D-Sub Connectors | |
| 3D Model | 773-E15-113Rxx1.pdf 773-E15-113Rxx1.stp 773-E15-113Rxx1.igs | |
| Online Catalog | Seal-D 772-E, 773-E and 774-E Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Norcomp Inc. | |
| Series | Seal-D 773-E | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder | |
| Features | Grounding Indents | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -50°C ~ 100°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polyamide (PA6T), Nylon 6T | |
| Color | White | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 773-E15-113R001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
773-E15-113R001 is in stock for immediate shipping now. We are the distributor of Norcomp Inc. all series components. The condition of 773-E15-113R001 is new and unused, you can buy 773-E15-113R001 Norcomp Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 773-E15-113R001.
