Manufacturer Part Number: | 772-E25-203R001 |
---|---|
Manufacturer: | Norcomp Inc. |
Product Category: | D-Sub Connectors |
Available Quantity: | 9060 Pieces |
Unit Price: | Quote by Email |

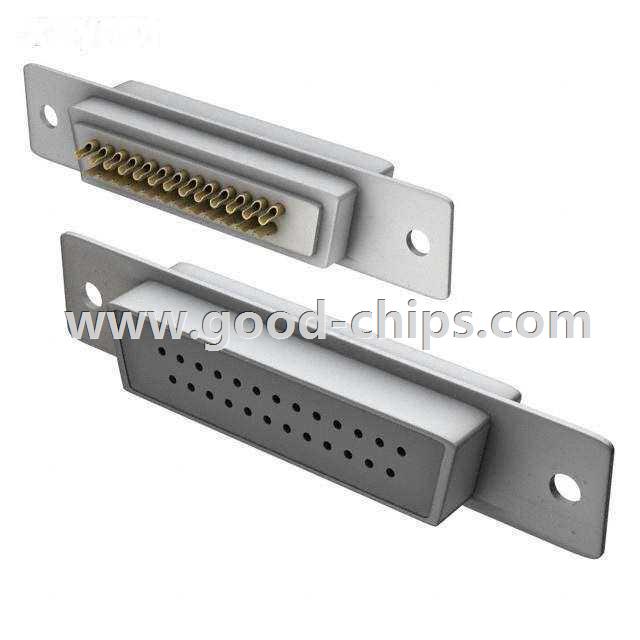

Description: | 25 Position D-Sub Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 772-E25-203R001 Datasheet |
Internal Part Number | 898-772-E25-203R001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SEAL-D™ IP67 Connectors | |
Video File | IP67 D-Sub Assembly | |
Featured Product | SEAL-D® D-Sub Connectors | |
3D Model | 772-E25-203Rxx1.pdf 772-E25-203Rxx1.stp 772-E25-203Rxx1.igs | |
Online Catalog | Seal-D 772-E, 773-E and 774-E Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Norcomp Inc. | |
Series | Seal-D 772-E | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 25 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) | |
Contact Type | Signal | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Operating Temperature | -50°C ~ 100°C | |
Voltage Rating | - | |
Current Rating | 5A | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Color | White | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 772-E25-203R001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
772-E25-203R001 is in stock for immediate shipping now. We are the distributor of Norcomp Inc. all series components. The condition of 772-E25-203R001 is new and unused, you can buy 772-E25-203R001 Norcomp Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 772-E25-203R001.
