| Manufacturer Part Number: | 7702 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Screw Connectors |
| Available Quantity: | 9945 Pieces |
| Unit Price: | Quote by Email |

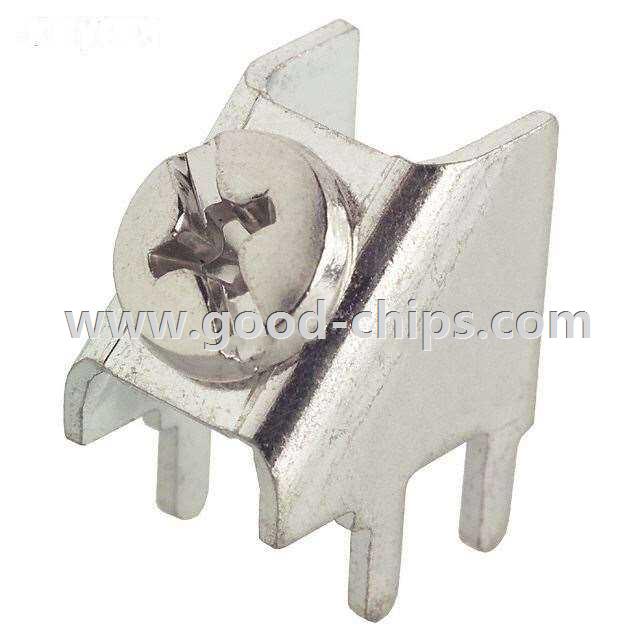

| Description: | 4 Pin Screw Terminal, Power Tap 6-32 Through Hole, 45° Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7702 Datasheet |
| Internal Part Number | 898-7702 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Tin Plating Handling Instr | |
| RoHS Information | RoHS Compliance Statement | |
| Online Catalog | Screw Terminals - Keystone Electronics | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Screw Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Screw Terminal, Power Tap | |
| Screw Size | 6-32 | |
| Termination | Solder | |
| Current Rating | 15A | |
| Number of Pins | 4 | |
| Mounting Type | Through Hole, 45° Angle | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Material | Brass | |
| Material - Insulation | - | |
| Screw Material | Brass | |
| Screw Finish | Nickel | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7702 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7702 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 7702 is new and unused, you can buy 7702 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7702.
