| Manufacturer Part Number: | 76PSB12T |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 9041 Pieces |
| Unit Price: | Quote by Email |

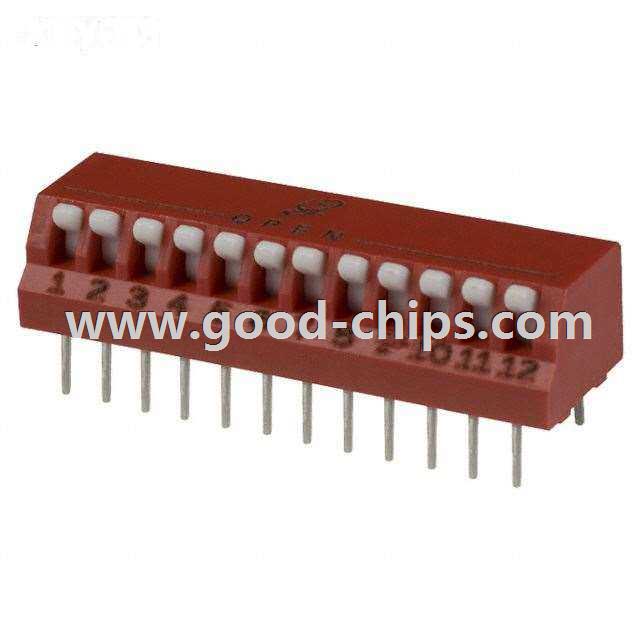

| Description: | Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 76PSB12T Datasheet |
| Internal Part Number | 898-76PSB12T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Compliance Status by Product Type | |
| Online Catalog | 76 Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 76 | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 12 | |
| Current Rating | 150mA | |
| Voltage Rating | 30VDC | |
| Actuator Type | Piano | |
| Actuator Level | Raised | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.301" (7.65mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Thermoplastic | |
| Length | 1.280" (32.51mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 2,000 Cycles | |
| Electrical Life | 2,000 Cycles | |
| Standard Package | 8 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 76PSB12T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
76PSB12T is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 76PSB12T is new and unused, you can buy 76PSB12T Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 76PSB12T.
