Manufacturer Part Number: | 74LVU04DB,118 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Inverter IC 6 Channel 14-SSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 74LVU04DB,118 Datasheet |
Internal Part Number | 898-74LVU04DB,118 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Logic Packages | |
PCN Obsolescence/ EOL | Multiple Devices 15/Mar/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | NXP Semiconductors | |
Series | 74LVU | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Logic Type | Inverter | |
Number of Circuits | 6 | |
Number of Inputs | 6 | |
Features | - | |
Voltage - Supply | 1 V ~ 5.5 V | |
Current - Quiescent (Max) | 40µA | |
Current - Output High, Low | 12mA, 12mA | |
Logic Level - Low | 0.2 V ~ 0.5 V | |
Logic Level - High | 1 V ~ 2.4 V | |
Max Propagation Delay @ V, Max CL | 7ns @ 3.3V, 50pF | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |
Supplier Device Package | 14-SSOP | |

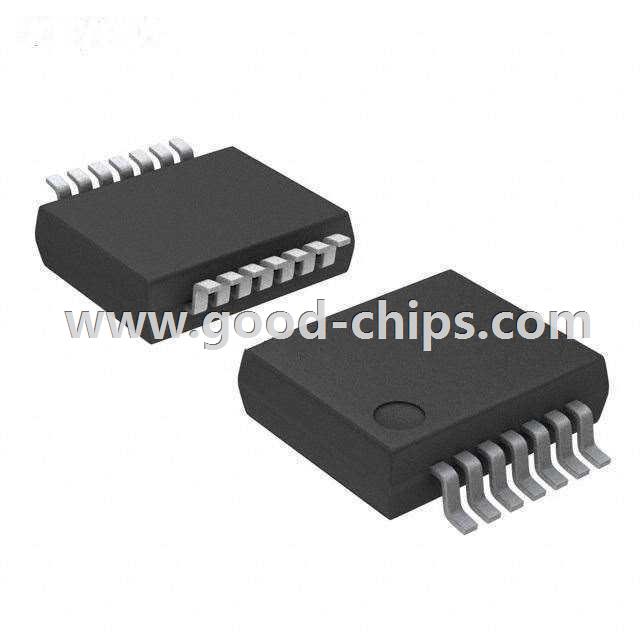

Package / Case | 14-SSOP (0.209", 5.30mm Width) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 74LVU04DB,118 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
74LVU04DB,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of 74LVU04DB,118 is new and unused, you can buy 74LVU04DB,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74LVU04DB,118.
