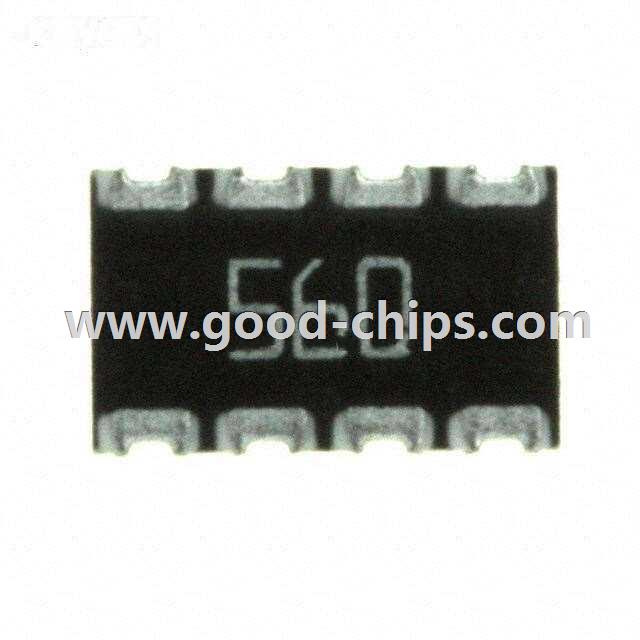

Manufacturer Part Number: | 744C083560JP |
---|---|
Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
Product Category: | Resistor Networks, Arrays |
Available Quantity: | 17010 Pieces |
Unit Price: | Quote by Email |
Description: | RES ARRAY 4 RES 56 OHM 2012 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 744C083560JP Datasheet |
Internal Part Number | 898-744C083560JP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 740-746 Series Cert of Compliance | |
Featured Product | SMT Resistor and Resistor Networks | |
Online Catalog | 74x Series | |
Category | Resistors | |
Family | Resistor Networks, Arrays | |
Manufacturer | CTS Resistor Products | |
Series | 744 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Circuit Type | Isolated | |
Resistance (Ohms) | 56 | |
Tolerance | ±5% | |
Number of Resistors | 4 | |
Number of Pins | 8 | |
Power Per Element | 125mW | |
Temperature Coefficient | ±200ppm/°C | |
Operating Temperature | -55°C ~ 125°C | |
Applications | - | |
Mounting Type | Surface Mount | |
Package / Case | 2012, Concave, Long Side Terminals | |
Supplier Device Package | 1206 | |
Size / Dimension | 0.200" L x 0.126" W (5.08mm x 3.20mm) | |
Height | 0.028" (0.70mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 744C083560JP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
744C083560JP is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 744C083560JP is new and unused, you can buy 744C083560JP Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 744C083560JP.
