| Manufacturer Part Number: | 74485540080 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shielded 2 Coil Inductor Array 3.2µH Inductance - Connected in Series 800nH Inductance - Connected in Parallel 2.56 mOhm Max DC Resistance (DCR) - Parallel 28A 4-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 74485540080 Datasheet |
| Internal Part Number | 898-74485540080 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |

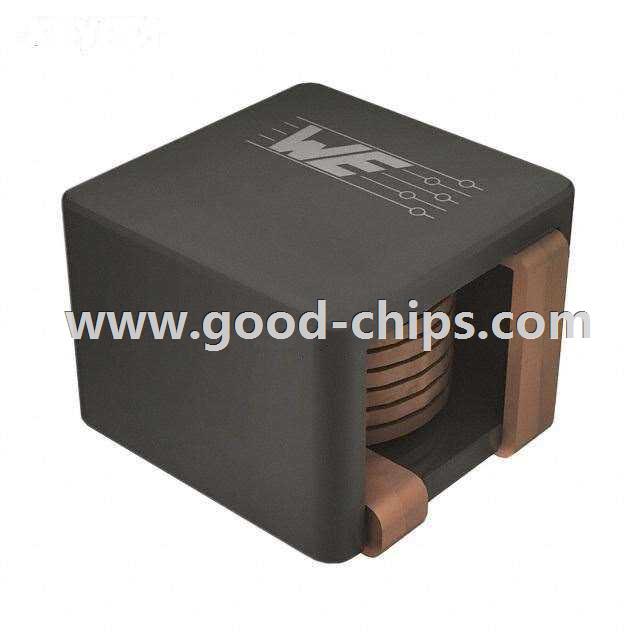

| Featured Product | SMD High-Current Coupled Inductors WE-CFWI | |
| 3D Model | 74485540zzz.igs 74485540zzz.stp | |
| Online Catalog | WE-CFWI Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-CFWI | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 3.2µH | |
| Inductance - Connected In Parallel | 800nH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 28A | |
| Current Rating - Series | 14A | |
| Current Saturation - Parallel | 62A | |
| Current Saturation - Series | 31A | |
| DC Resistance (DCR) - Parallel | 2.56 mOhm Max | |
| DC Resistance (DCR) - Series | - | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD | |
| Size / Dimension | 0.610" L x 0.520" W (15.50mm x 13.20mm) | |
| Height | 0.413" (10.50mm) | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 74485540080 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
74485540080 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 74485540080 is new and unused, you can buy 74485540080 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74485540080.
