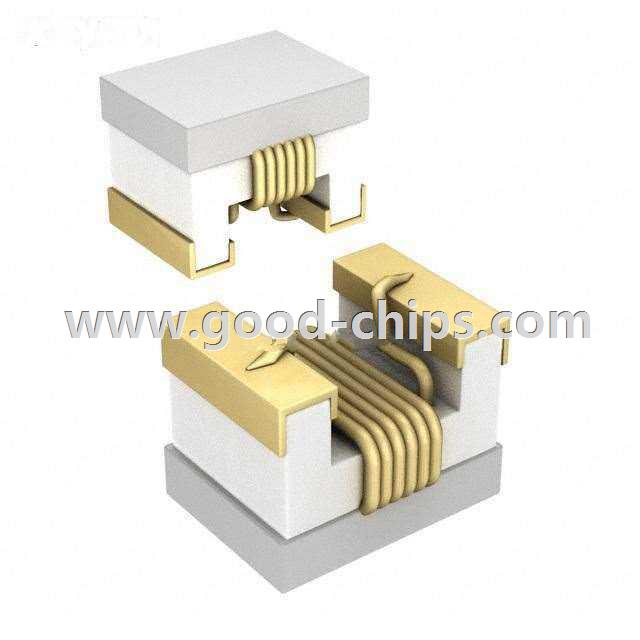

Manufacturer Part Number: | 7447602C |
---|---|
Manufacturer: | Wurth Electronics Inc |
Product Category: | Fixed Inductors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | 100nH Unshielded Wirewound Inductor 400mA 460 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 7447602C Datasheet |
Internal Part Number | 898-7447602C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | WE-KI 0805 S-Parameters | |
Featured Product | Ceramic Wirewound RF Inductors | |
3D Model | 74476zzzz.igs 74476zzzz.stp | |
Online Catalog | WE-KI Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Wurth Electronics Inc | |
Series | WE-KI | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ceramic | |
Inductance | 100nH | |
Tolerance | ±5% | |
Current Rating | 400mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 460 mOhm Max | |
Q @ Freq | 50 @ 500MHz | |
Frequency - Self Resonant | 1.2GHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 150MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.090" L x 0.067" W (2.29mm x 1.70mm) | |
Height - Seated (Max) | 0.058" (1.48mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 7447602C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
7447602C is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 7447602C is new and unused, you can buy 7447602C Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7447602C.
