| Manufacturer Part Number: | 744758322A |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

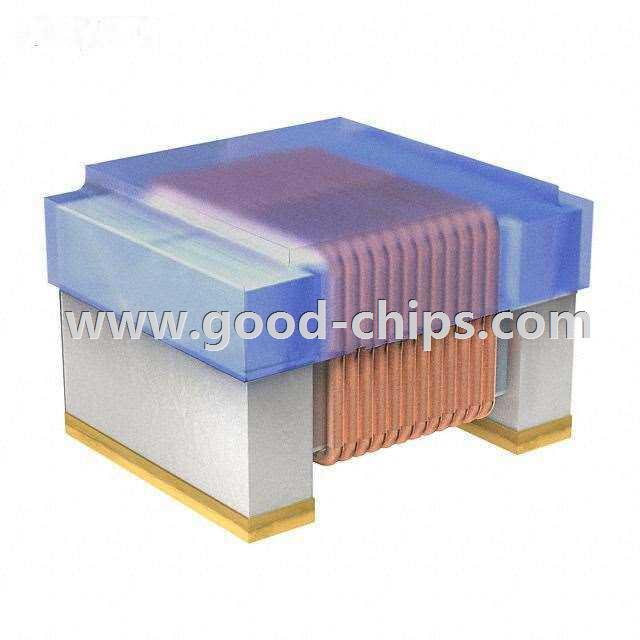

| Description: | 2.2µH Unshielded Wirewound Inductor 520mA 1.1 Ohm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 744758322A Datasheet |
| Internal Part Number | 898-744758322A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 744758zzzA.igs 744758zzzA.stp | |
| Online Catalog | WE-RFH Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-RFH | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 2.2µH | |
| Tolerance | ±5% | |
| Current Rating | 520mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.1 Ohm Max | |
| Q @ Freq | 20 @ 7.96MHz | |
| Frequency - Self Resonant | 160MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 7.96MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.102" L x 0.083" W (2.60mm x 2.10mm) | |
| Height - Seated (Max) | 0.075" (1.90mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 744758322A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
744758322A is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 744758322A is new and unused, you can buy 744758322A Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 744758322A.
