| Manufacturer Part Number: | 74438343010 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

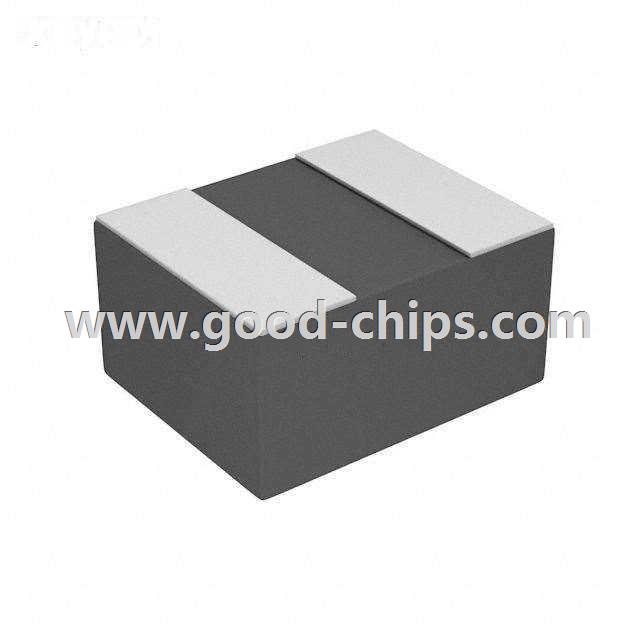

| Description: | 1µH Shielded Molded Inductor 1.8A 104 mOhm Max 0806 (2016 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 74438343010 Datasheet |
| Internal Part Number | 898-74438343010 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | WE-MAPI the most efficient power inductor | |
| Featured Product | WE-MAPI SMD Shielded Power Inductor | |
| 3D Model | WE-MAPI_2010.igs WE-MAPI_2010.stp | |
| PCN Packaging | MAPI Series ESD Conform 01/Jun/2016 | |
| Online Catalog | WE-MAPI Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-MAPI | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | Metal Composite | |
| Inductance | 1µH | |
| Tolerance | ±30% | |
| Current Rating | 1.8A | |
| Current - Saturation | 3.9A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 104 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 99MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0806 (2016 Metric) | |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 74438343010 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
74438343010 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 74438343010 is new and unused, you can buy 74438343010 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74438343010.
