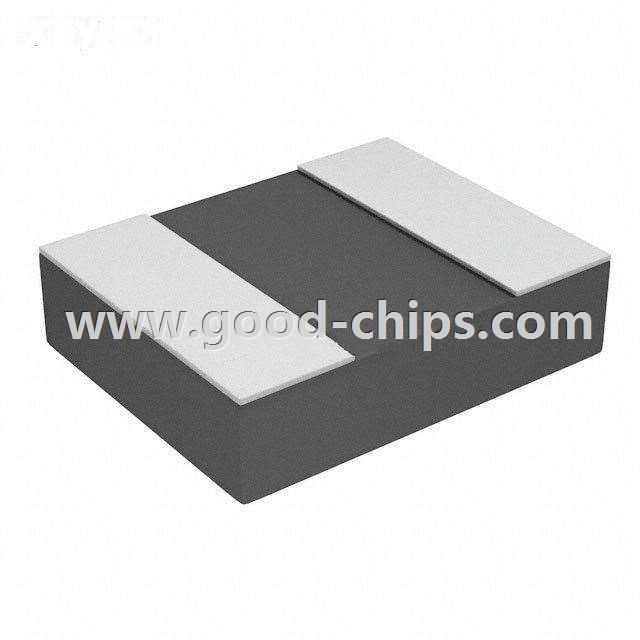

.6mm.jpg)
| Manufacturer Part Number: | 744383220047 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Fixed Inductors |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 470nH Shielded Molded Inductor 2.25A 87 mOhm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 744383220047 Datasheet |
| Internal Part Number | 898-744383220047 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | WE-MAPI the most efficient power inductor | |
| Featured Product | WE-MAPI Miniature High-Current Inductors WE-MAPI SMD Shielded Power Inductor | |
| 3D Model | WE-MAPI_2508.igs WE-MAPI_2508.stp | |
| Online Catalog | WE-MAPI Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-MAPI | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | Metal Composite | |
| Inductance | 470nH | |
| Tolerance | ±30% | |
| Current Rating | 2.25A | |
| Current - Saturation | 4.4A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 87 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 160MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height - Seated (Max) | 0.024" (0.60mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 744383220047 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
744383220047 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 744383220047 is new and unused, you can buy 744383220047 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 744383220047.
