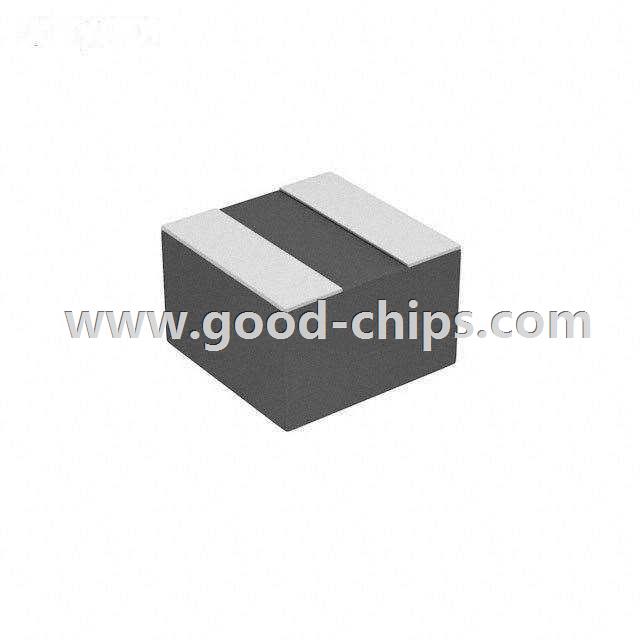

| Manufacturer Part Number: | 74438313022 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2µH Shielded Wirewound Inductor 850mA 388 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 74438313022 Datasheet |
| Internal Part Number | 898-74438313022 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | WE-MAPI the most efficient power inductor | |
| Featured Product | WE-MAPI Power Inductors WE-MAPI SMD Shielded Power Inductor | |
| 3D Model | WE-MAPI_1610.igs WE-MAPI_1610.stp | |
| Online Catalog | WE-MAPI Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-MAPI | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Metal Composite | |
| Inductance | 2.2µH | |
| Tolerance | ±30% | |
| Current Rating | 850mA | |
| Current - Saturation | 2.5A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 388 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 70MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 74438313022 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
74438313022 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 74438313022 is new and unused, you can buy 74438313022 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74438313022.
