| Manufacturer Part Number: | 744233670 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 67 Ohm @ 100MHz 320mA DCR 240 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 744233670 Datasheet |
| Internal Part Number | 898-744233670 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | USB 3.0 Applications | |
| Featured Product | WE-CNSW SMD Common-Mode Line Filter | |
| 3D Model | 744233zzz.igs 744233zzz.stp | |
| Online Catalog | WE-CNSW/WE-CNSW HF | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-CNSW HF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 67 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 320mA | |
| DC Resistance (DCR) (Max) | 240 mOhm | |
| Voltage Rating - DC | 50V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | |
| Height (Max) | 0.055" (1.40mm) | |

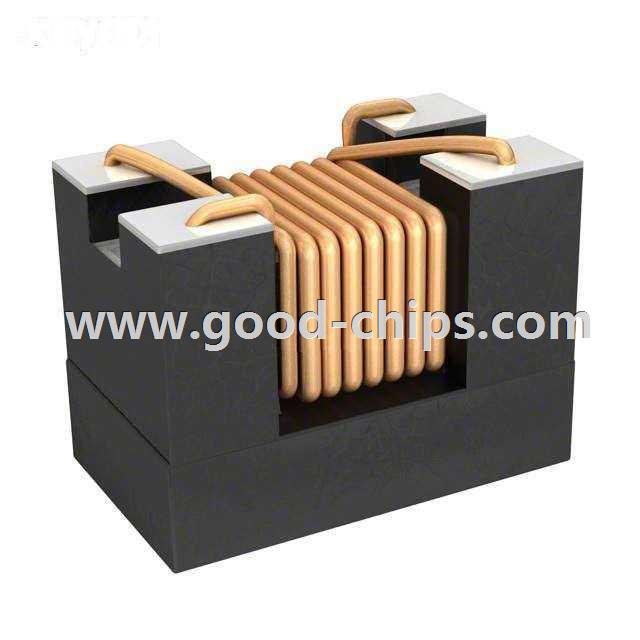

| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 744233670 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
744233670 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 744233670 is new and unused, you can buy 744233670 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 744233670.
