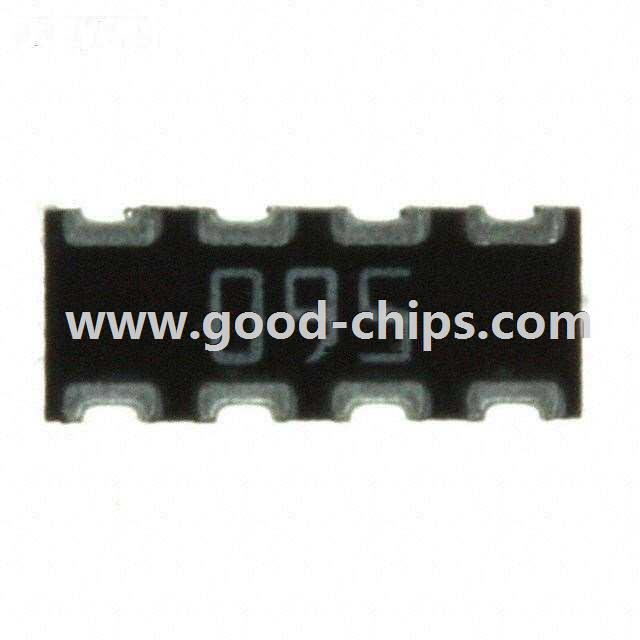

| Manufacturer Part Number: | 743C083560JP |
|---|---|
| Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
| Product Category: | Resistor Networks, Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES ARRAY 4 RES 56 OHM 2008 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 743C083560JP Datasheet |
| Internal Part Number | 898-743C083560JP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 740-746 Series Cert of Compliance | |
| Featured Product | SMT Resistor and Resistor Networks | |
| Category | Resistors | |
| Family | Resistor Networks, Arrays | |
| Manufacturer | CTS Resistor Products | |
| Series | 743 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit Type | Isolated | |
| Resistance (Ohms) | 56 | |
| Tolerance | ±5% | |
| Number of Resistors | 4 | |
| Number of Pins | 8 | |
| Power Per Element | 100mW | |
| Temperature Coefficient | ±200ppm/°C | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2008, Concave, Long Side Terminals | |
| Supplier Device Package | 0805 | |
| Size / Dimension | 0.200" L x 0.079" W (5.08mm x 2.00mm) | |
| Height | 0.028" (0.70mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 743C083560JP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
743C083560JP is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 743C083560JP is new and unused, you can buy 743C083560JP Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 743C083560JP.
