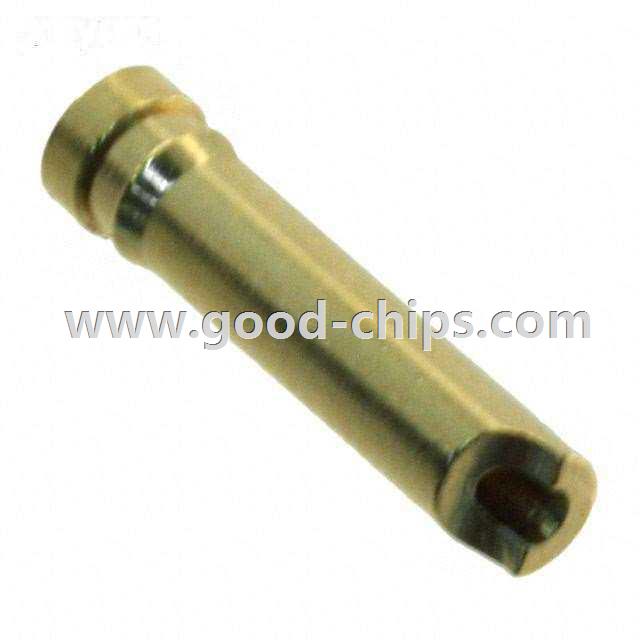

| Manufacturer Part Number: | 7405-0-18-15-18-27-10-0 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 30481 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) Solder Cup Press-Fit |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7405-0-18-15-18-27-10-0 Datasheet |
| Internal Part Number | 898-7405-0-18-15-18-27-10-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Pin Receptacles | |
| Article Library | How to Specify Connectors for LED Applications | |
| Online Catalog | Mill-Max Manufacturing Corp. | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 7405 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Tail Type | Solder Cup | |
| Termination | Press-Fit | |
| Length - Overall | 0.375" (9.53mm) | |
| Accepts Pin Diameter | 0.037" ~ 0.043" (0.94mm ~ 1.09mm) | |
| Mounting Hole Diameter | 0.084" (2.13mm) | |
| Pin Hole Diameter | 0.054" (1.37mm) | |
| Flange Diameter | 0.090" (2.29mm) | |
| Tail Diameter | - | |
| Socket Depth | 0.220" (5.59mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Board Thickness | - | |
| Insertion Force | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7405-0-18-15-18-27-10-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7405-0-18-15-18-27-10-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 7405-0-18-15-18-27-10-0 is new and unused, you can buy 7405-0-18-15-18-27-10-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7405-0-18-15-18-27-10-0.
