Manufacturer Part Number: | 71AD36-01-2-AJN |
---|---|
Manufacturer: | Grayhill Inc. |
Product Category: | Rotary Switches |
Available Quantity: | 9274 Pieces |
Unit Price: | Quote by Email |

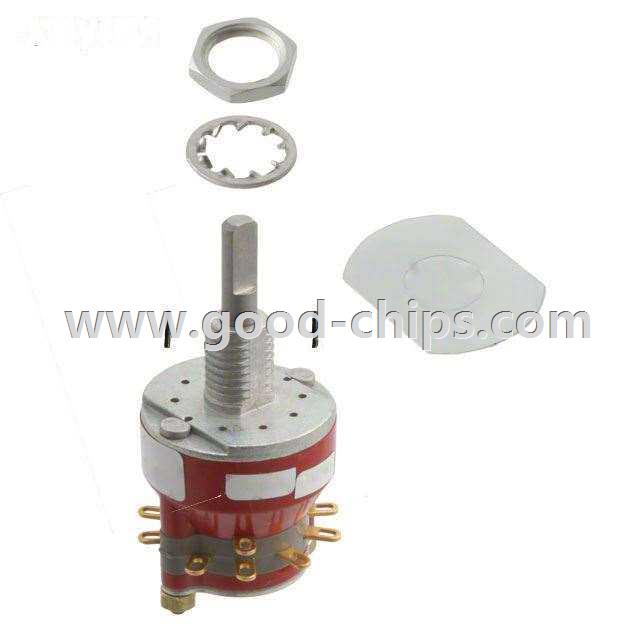

Description: | Rotary Switch 2 ~ 5 Position DP5T 250mA (AC/DC) 115VAC Panel Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 71AD36-01-2-AJN Datasheet |
Internal Part Number | 898-71AD36-01-2-AJN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Other | Multiple Devices Plating Material 30/Jan/2015 | |
Online Catalog | 71 Series | |
Category | Switches | |
Family | Rotary Switches | |
Manufacturer | Grayhill Inc. | |
Series | 71 | |
Part Status | Active | |
Number of Positions | 2 ~ 5 | |
Index Stops | Adjustable | |
Number of Decks | 1 | |
Number of Poles per Deck | 2 | |
Circuit per Deck | DP5T | |
Contact Timing | Non-Shorting (BBM) | |
Current Rating | 250mA (AC/DC) | |
Voltage Rating - AC | 115V | |
Voltage Rating - DC | 30V | |
Actuator Type | Flatted (3.17mm Dia) | |
Actuator Length | 9.53mm | |
Angle of Throw | 36° | |
Contact Material | Silver Alloy | |
Contact Finish | - | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Features | - | |
Depth Behind Panel | 19.33mm | |
Panel Cutout Dimensions | - | |
Operating Force, Torque | 4 ~ 32 in-oz | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 71AD36-01-2-AJN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
71AD36-01-2-AJN is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 71AD36-01-2-AJN is new and unused, you can buy 71AD36-01-2-AJN Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 71AD36-01-2-AJN.
