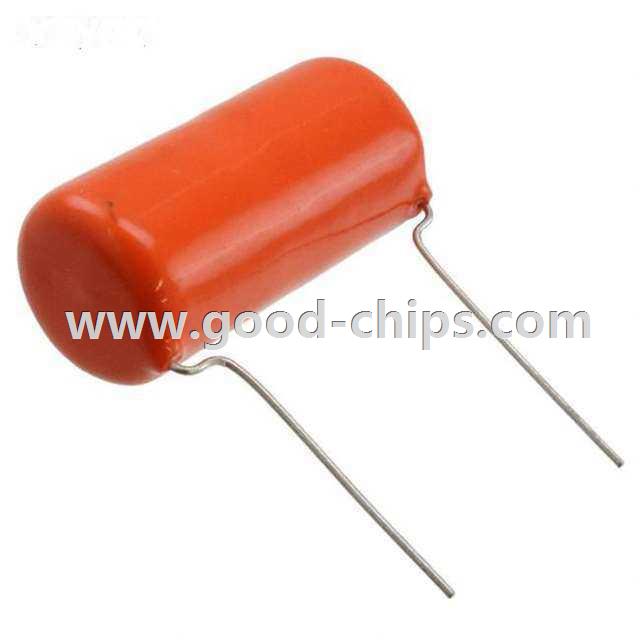

| Manufacturer Part Number: | 715P223516MD3 |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Film Capacitors |
| Available Quantity: | 10125 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.022µF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial 1.650" L x 0.690" W (41.90mm x 17.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 715P223516MD3 Datasheet |
| Internal Part Number | 898-715P223516MD3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Orange Drop® Capacitors | |
| Online Catalog | Orange Drop® 715P Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | Orange Drop® 715P | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 0.022µF | |
| Tolerance | ±5% | |
| Voltage Rating - AC | 500V | |
| Voltage Rating - DC | 1600V (1.6kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.650" L x 0.690" W (41.90mm x 17.50mm) | |
| Height - Seated (Max) | 0.728" (18.50mm) | |
| Termination | PC Pins | |
| Lead Spacing | 1.094" (27.79mm) | |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | |
| Features | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 715P223516MD3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
715P223516MD3 is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of 715P223516MD3 is new and unused, you can buy 715P223516MD3 Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 715P223516MD3.
