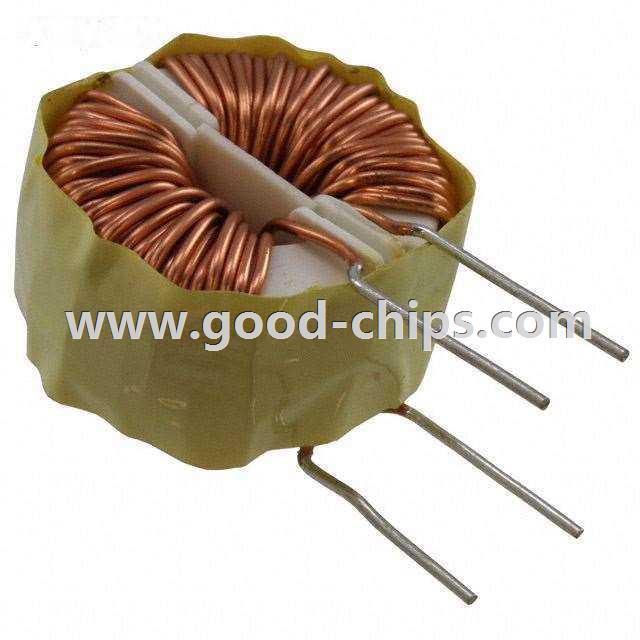

| Manufacturer Part Number: | 7118-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.7mH @ 1kHz 2 Line Common Mode Choke Through Hole 5A DCR 40 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7118-RC Datasheet |
| Internal Part Number | 898-7118-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 7118-RC.stp | |
| PCN Design/Specification | 7100 SeriesMultiple Changes Jul/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Bourns Inc. | |
| Series | 7100 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | - | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 1.7mH @ 1kHz | |
| Current Rating (Max) | 5A | |
| DC Resistance (DCR) (Max) | 40 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.200" Dia x 0.800" W (30.48mm x 20.32mm) | |
| Height (Max) | 1.200" (30.48mm) | |
| Package / Case | Vertical, No Base, 4 PC Pin | |
| Standard Package | 35 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7118-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7118-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 7118-RC is new and unused, you can buy 7118-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7118-RC.
