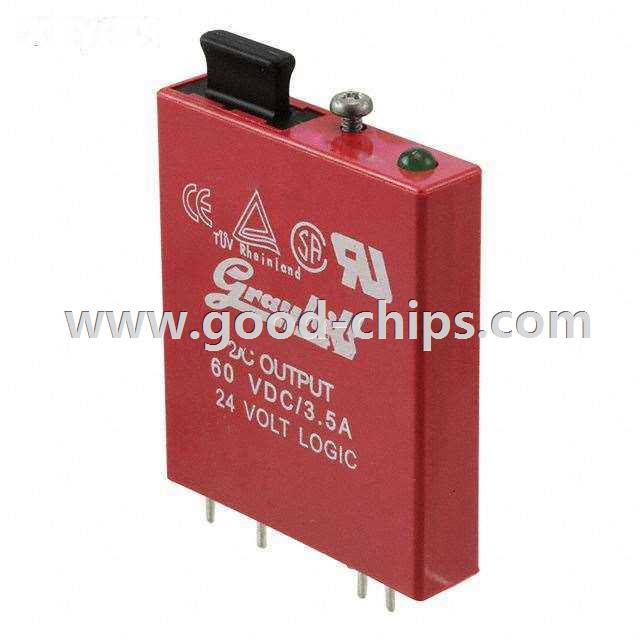

Manufacturer Part Number: | 70G-ODC24B |
---|---|
Manufacturer: | Grayhill Inc. |
Product Category: | I/O Relay Modules - Output |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | DC Output Module 0.02 ~ 3.5A 3 ~ 60VDC Output 24VDC (18 ~ 32VDC) Supply |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 70G-ODC24B Datasheet |
Internal Part Number | 898-70G-ODC24B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Input/Output Devices | |
RoHS Information | Compliance Status by Product Type | |
Featured Product | I/O Modules | |
PCN Design/Specification | I/O Modules/Mounting Racks Marking 31/Jul/2014 I/O Modules/Mounting Racks Rev. Marking 15/Aug/2014 | |
PCN Assembly/Origin | Multiple Devices Change of Manufacturing Equipment 10/Aug/2016 | |
PCN Other | Standard 70/70G/70L/70M Tampo printing 17/Feb/2014 | |
Category | Relays | |
Family | I/O Relay Modules - Output | |
Manufacturer | Grayhill Inc. | |
Series | 70 | |
Part Status | Active | |
Type | DC | |
Color | Red | |
Style | G5 | |
Voltage - Input | 24VDC (18 ~ 32VDC) | |
Current - Input | 9mA | |
Voltage - Output | 3 ~ 60VDC | |
Current - Output | 0.02 ~ 3.5A | |
Turn On Time | 0.075ms | |
Turn Off Time | 0.50ms | |
Features | Hold Down Screw, Fused, Status LED(s) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 70G-ODC24B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
70G-ODC24B is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 70G-ODC24B is new and unused, you can buy 70G-ODC24B Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70G-ODC24B.
