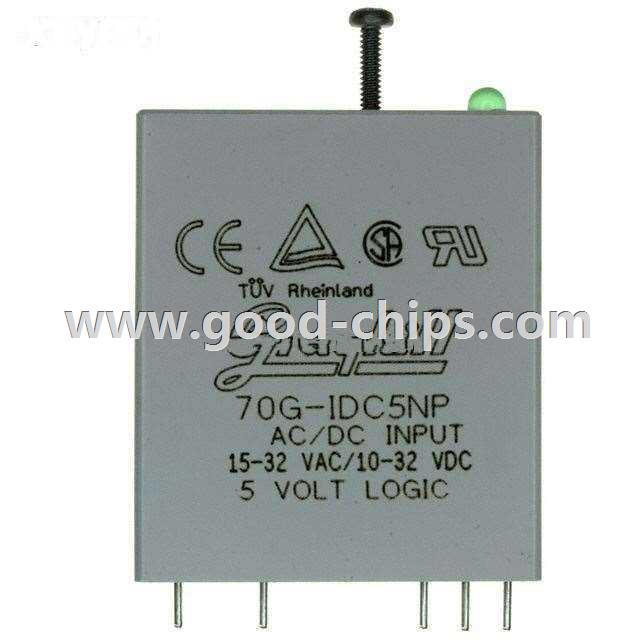

| Manufacturer Part Number: | 70G-IDC5NP |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | I/O Relay Modules - Input |
| Available Quantity: | 9044 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC Input Module 15 ~ 32VAC, 10 ~ 32VDC Input 5VDC (4.5 ~ 6VDC) Supply |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 70G-IDC5NP Datasheet |
| Internal Part Number | 898-70G-IDC5NP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Input/Output Devices | |
| RoHS Information | Compliance Status by Product Type | |
| Featured Product | I/O Modules | |
| PCN Design/Specification | I/O Modules/Mounting Racks Marking 31/Jul/2014 I/O Modules/Mounting Racks Rev. Marking 15/Aug/2014 | |
| PCN Assembly/Origin | Multiple Devices Change of Manufacturing Equipment 10/Aug/2016 | |
| PCN Other | Standard 70/70G/70L/70M Tampo printing 17/Feb/2014 | |
| Online Catalog | 70 Series | |
| Category | Relays | |
| Family | I/O Relay Modules - Input | |
| Manufacturer | Grayhill Inc. | |
| Series | 70 | |
| Part Status | Active | |
| Type | AC/DC | |
| Color | White | |
| Style | G5 | |
| Voltage - Input | 15 ~ 32VAC, 10 ~ 32VDC | |
| Current - Input | 18mA | |
| Logic Supply Voltage (Output) | 5VDC (4.5 ~ 6VDC) | |
| Logic Supply Current (Output) | 10mA | |
| Turn On Time | 5ms | |
| Turn Off Time | 5ms | |
| Features | Hold Down Screw, Status LED(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 70G-IDC5NP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
70G-IDC5NP is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 70G-IDC5NP is new and unused, you can buy 70G-IDC5NP Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70G-IDC5NP.
