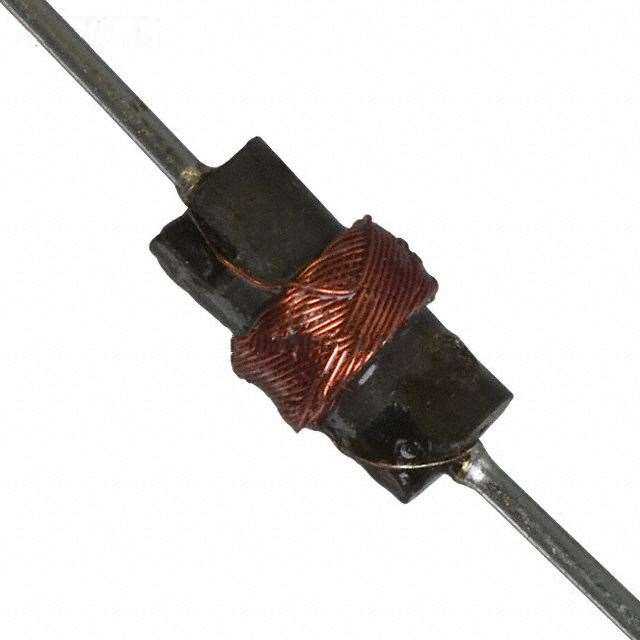

Manufacturer Part Number: | 70F335AI-RC |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9205 Pieces |
Unit Price: | Quote by Email |
Description: | 33µH Unshielded Wirewound Inductor 208mA 2.76 Ohm Max Axial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 70F335AI-RC Datasheet |
Internal Part Number | 898-70F335AI-RC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Product Overview | |
3D Model | 70F335AI-RC.stp | |
PCN Obsolescence/ EOL | 70F Series Varnished Chokes Mat/2016 | |
PCN Part Status Change | Multiple Devices Optimization Plans Jul/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 70F Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 70F | |
Packaging | Bulk | |
Part Status | Last Time Buy | |
Type | Wirewound | |
Material - Core | Iron | |
Inductance | 33µH | |
Tolerance | ±5% | |
Current Rating | 208mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 2.76 Ohm Max | |
Q @ Freq | 50 @ 2.5MHz | |
Frequency - Self Resonant | 10MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 105°C | |
Frequency - Test | 2.5MHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | |
Height - Seated (Max) | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 70F335AI-RC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
70F335AI-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 70F335AI-RC is new and unused, you can buy 70F335AI-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70F335AI-RC.
