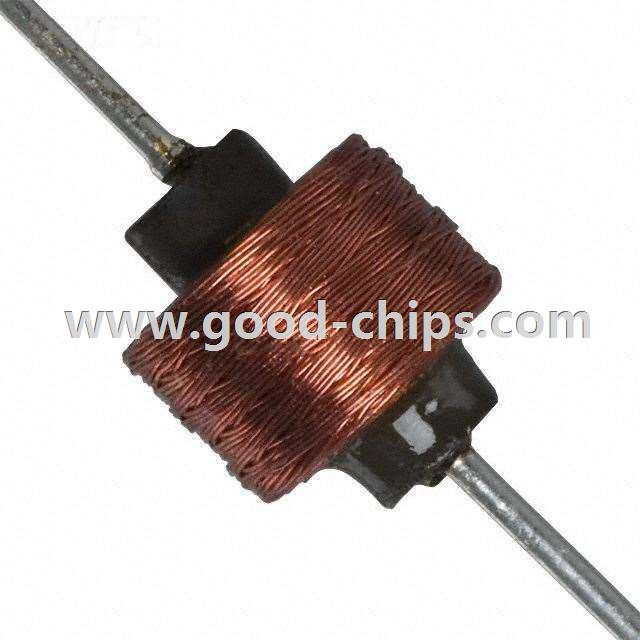

| Manufacturer Part Number: | 70F223AI-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2mH Unshielded Wirewound Inductor 57mA 45.6 Ohm Max Axial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 70F223AI-RC Datasheet |
| Internal Part Number | 898-70F223AI-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| 3D Model | 70F223AI-RC.stp | |
| PCN Obsolescence/ EOL | 70F Series Varnished Chokes Mat/2016 | |
| PCN Part Status Change | Multiple Devices Optimization Plans Jul/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 70F Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | 70F | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Type | Wirewound | |
| Material - Core | Iron | |
| Inductance | 2.2mH | |
| Tolerance | ±5% | |
| Current Rating | 57mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 45.6 Ohm Max | |
| Q @ Freq | 40 @ 250kHz | |
| Frequency - Self Resonant | 960kHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 250kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.240" Dia x 0.250" L (6.10mm x 6.35mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 144 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 70F223AI-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
70F223AI-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 70F223AI-RC is new and unused, you can buy 70F223AI-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70F223AI-RC.
