Manufacturer Part Number: | 70F107AP |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

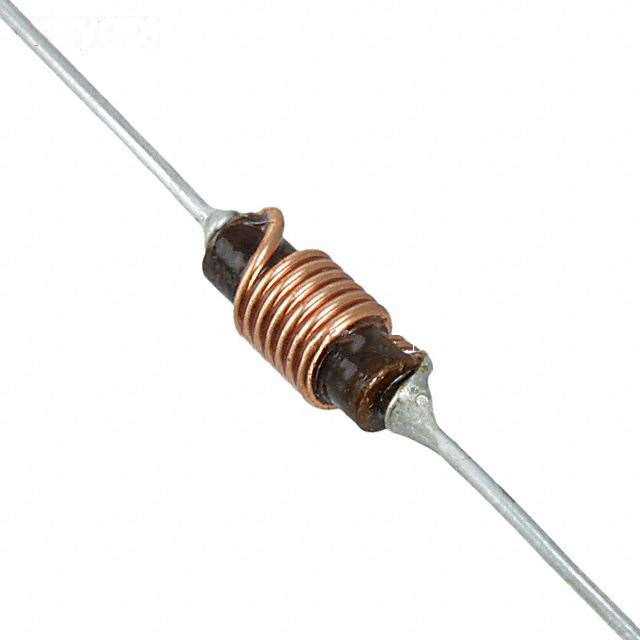

Description: | 100nH Unshielded Wirewound Inductor 3.922A 130 mOhm Max Axial |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 70F107AP Datasheet |
Internal Part Number | 898-70F107AP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 70F | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Wirewound | |
Material - Core | Phenolic | |
Inductance | 100nH | |
Tolerance | ±20% | |
Current Rating | 3.922A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 130 mOhm Max | |
Q @ Freq | 49 @ 25MHz | |
Frequency - Self Resonant | 600MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 25MHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) | |
Height - Seated (Max) | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 70F107AP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
70F107AP is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 70F107AP is new and unused, you can buy 70F107AP Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70F107AP.
