| Manufacturer Part Number: | 70AAJ-5-F0 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Rectangular Connectors - Spring Loaded |
| Available Quantity: | 9830 Pieces |
| Unit Price: | Quote by Email |

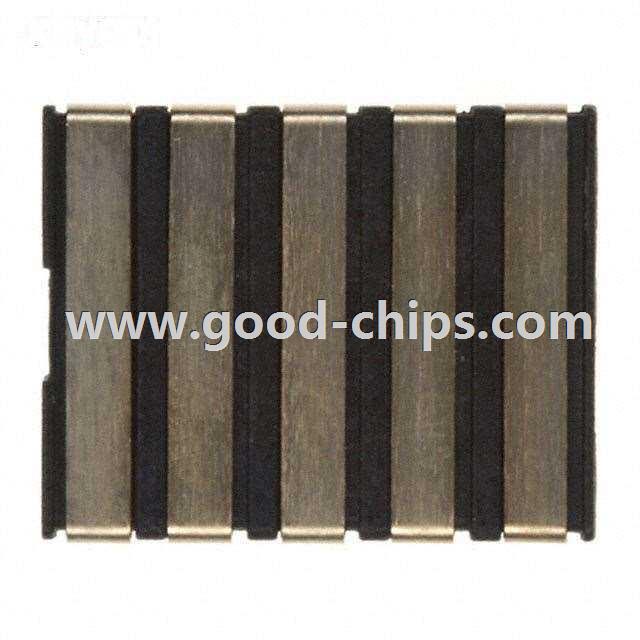

| Description: | 5 Position Spring Compression Contact, Female Connector Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 70AAJ-5-F0 Datasheet |
| Internal Part Number | 898-70AAJ-5-F0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 70AA 5PIN Material Declaration | |
| PCN Design/Specification | 70AD,70AA,70AB Series Aug/2014 | |
| PCN Assembly/Origin | Facility Transfer Jul/2012 | |
| PCN Packaging | Min/Mult Order Quantity Apr/2013 70AA Male, 70AA Female Models Sept/2013 | |
| Online Catalog | 70AA Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Spring Loaded | |
| Manufacturer | Bourns Inc. | |
| Series | 70AA | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Compression Contact, Female | |
| Number of Contacts | 5 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Surface Mount | |
| Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 70AAJ-5-F0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
70AAJ-5-F0 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 70AAJ-5-F0 is new and unused, you can buy 70AAJ-5-F0 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70AAJ-5-F0.
