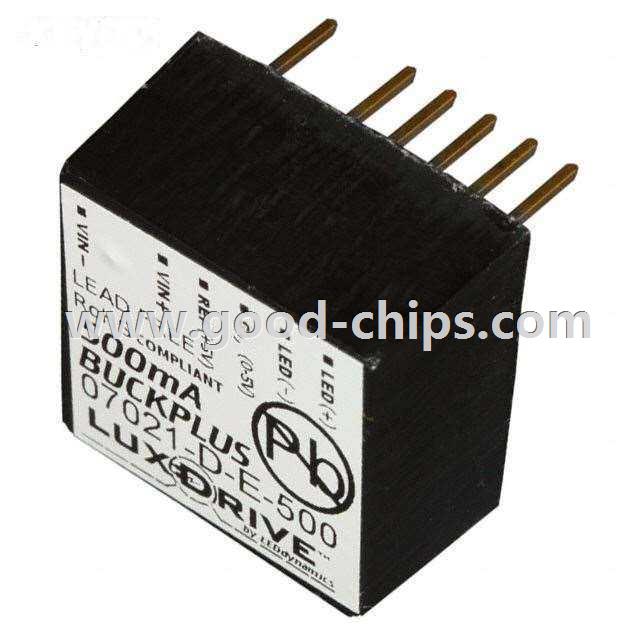

| Manufacturer Part Number: | 7021-D-E-500 |
|---|---|
| Manufacturer: | LEDdynamics Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 500mA 32V (Max) Constant Current LED Driver Buck Topology 1 Output |
| Lead Free Status / RoHS Status: | Vendor undefined / Vendor undefined |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7021-D-E-500 Datasheet |
| Internal Part Number | 898-7021-D-E-500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Power Supplies - Board Mount | |
| Family | LED Drivers | |
| Manufacturer | LEDdynamics Inc. | |
| Series | BuckPlus™ 7021 | |
| Part Status | Obsolete | |
| Type | Constant Current | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 7V | |
| Voltage - Input (Max) | 32V | |
| Voltage - Output | 32V (Max) | |
| Current - Output (Max) | 500mA | |
| Power (Watts) | 16W | |
| Dimming | Analog | |
| Features | Remote On/Off, SCP | |
| Operating Temperature | -40°C ~ 80°C | |
| Efficiency | 95% | |
| Mounting Type | Through Hole | |
| Package / Case | 7-SIP Module | |
| Size / Dimension | 0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm) | |
| Packaging | Bulk | |
| Approvals | - | |
| Weight | 0.001 KG | |
| Standard Package | 25 | |
| Application | Email for details | |
| Replacement Part | 7021-D-E-500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7021-D-E-500 is in stock for immediate shipping now. We are the distributor of LEDdynamics Inc. all series components. The condition of 7021-D-E-500 is new and unused, you can buy 7021-D-E-500 LEDdynamics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7021-D-E-500.
