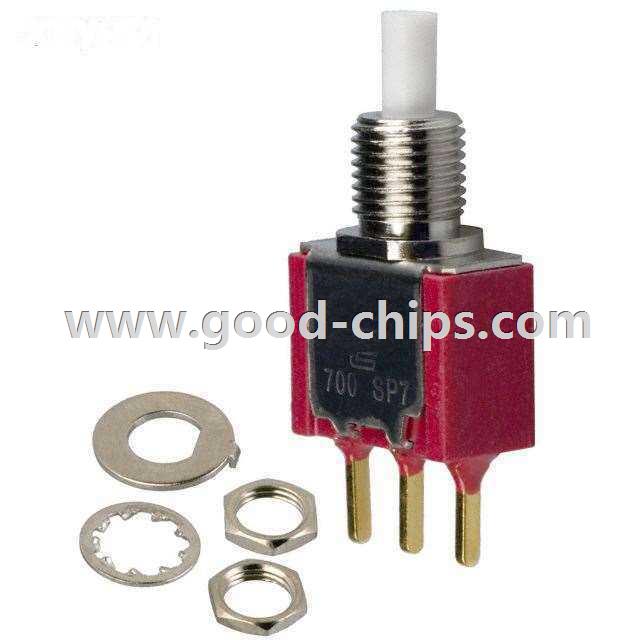

Manufacturer Part Number: | 700SP7B10M2REH |
---|---|
Manufacturer: | E-Switch |
Product Category: | Pushbutton Switches |
Available Quantity: | 10743 Pieces |
Unit Price: | Quote by Email |
Description: | Pushbutton Switch SPDT Standard Panel Mount, Rear |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 700SP7B10M2REH Datasheet |
Internal Part Number | 898-700SP7B10M2REH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switch Basics Power Switch Overview | |
RoHS Information | 700 Series RoHS Cert of Compliance | |
3D Model | 700SP7B10M2xEH.stp | |
Online Catalog | 700 Series | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | E-Switch | |
Series | 700 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Standard | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 0.4VA (AC/DC) | |
Voltage Rating - AC | 20V | |
Voltage Rating - DC | 20V | |
Actuator Type | Round, Plunger | |
Color - Actuator/Cap | White | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Rear | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Circular - 6.35mm Dia | |
Operating Temperature | -30°C ~ 85°C | |
Mechanical Life | 50,000 Cycles | |
Electrical Life | 50,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 700SP7B10M2REH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
700SP7B10M2REH is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of 700SP7B10M2REH is new and unused, you can buy 700SP7B10M2REH E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 700SP7B10M2REH.
