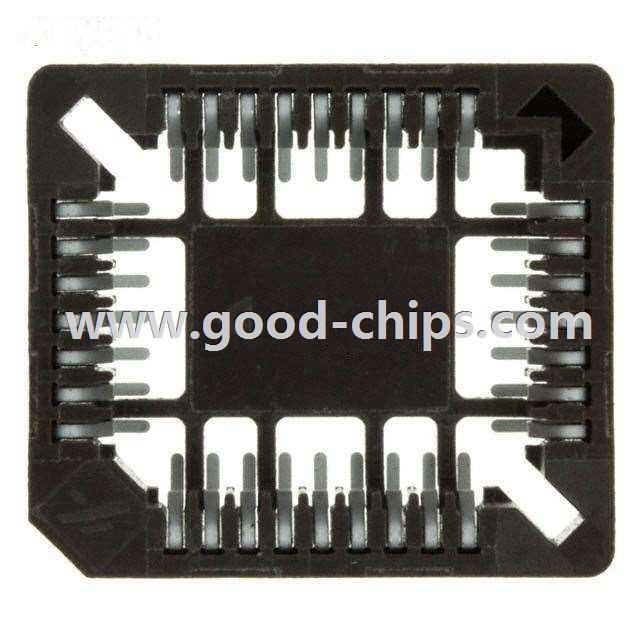

| Manufacturer Part Number: | 69802-132LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 18288 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN SOCKET PLCC 32POS TIN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 69802-132LF Datasheet |
| Internal Part Number | 898-69802-132LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 69802 Series | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Amphenol FCI | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | PLCC | |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | 150µin (3.81µm) | |
| Contact Material - Mating | Phosphor Bronze | |
| Mounting Type | Surface Mount | |
| Features | Closed Frame | |
| Termination | Solder | |
| Pitch - Post | 0.050" (1.27mm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 150µin (3.81µm) | |
| Contact Material - Post | Phosphor Bronze | |
| Housing Material | Polyphenylene Sulfide (PPS) | |
| Operating Temperature | -55°C ~ 125°C | |
| Termination Post Length | - | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1A | |
| Contact Resistance | 20 mOhm | |
| Standard Package | 28 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 69802-132LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
69802-132LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 69802-132LF is new and unused, you can buy 69802-132LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 69802-132LF.
