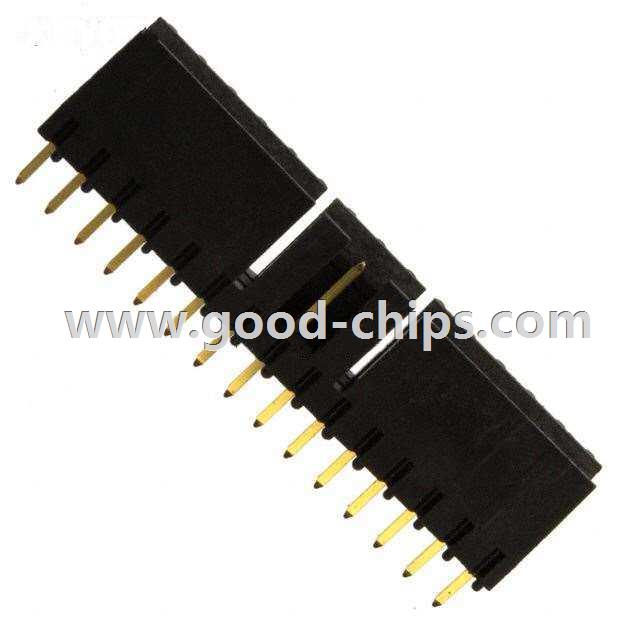

Manufacturer Part Number: | 69167-115HLF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Gold or Gold, GXT™ |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 69167-115HLF Datasheet |
Internal Part Number | 898-69167-115HLF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Gold Plating 16/Apr/2012 Resin 19/Apr/2013 Resin Rev 19/Apr/2014 | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Amphenol FCI | |
Series | Mini-PV™, Basics+ | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 15 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.230" (5.84mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Friction Lock | |
Features | - | |
Contact Finish | Gold or Gold, GXT™ | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 69167-115HLF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
69167-115HLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 69167-115HLF is new and unused, you can buy 69167-115HLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 69167-115HLF.
