Manufacturer Part Number: | 6909-1002-030 |
---|---|
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

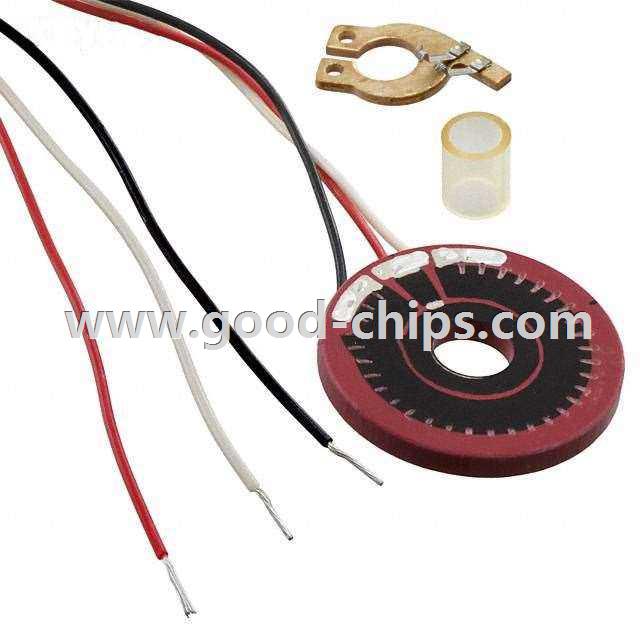

Description: | Resistive Sensor Rotary Position Exposed Element - Rotary Wire Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 6909-1002-030 Datasheet |
Internal Part Number | 898-6909-1002-030 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | TE Connectivity Measurement Specialties | |
Series | 6909 | |
Part Status | Active | |
For Measuring | Rotary Position | |
Technology | Resistive | |
Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous | |
Linear Range | - | |
Output | Resistive | |
Output Signal | Clockwise Increase | |
Actuator Type | Exposed Element - Rotary | |
Linearity | ±0.5% | |
Resistance (Ohms) | 5k | |
Resistance Tolerance | ±10% | |
Voltage - Supply | - | |
Mounting Type | Custom | |
Termination Style | Wire Leads | |
Operating Temperature | -65°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 6909-1002-030 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
6909-1002-030 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 6909-1002-030 is new and unused, you can buy 6909-1002-030 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 6909-1002-030.
