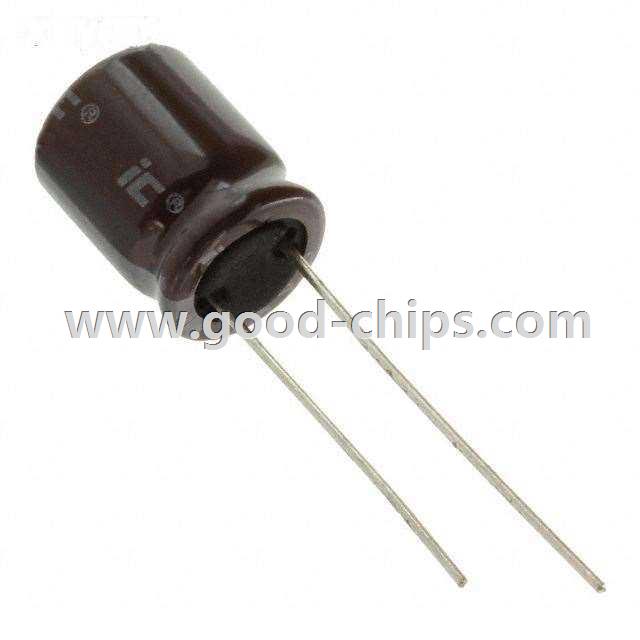

Manufacturer Part Number: | 686CKH100M |
---|---|
Manufacturer: | Illinois Capacitor |
Product Category: | Aluminum Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 68µF 100V Aluminum Capacitors Radial, Can 1.95 Ohm @ 120Hz 2000 Hrs @ 105°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 686CKH100M Datasheet |
Internal Part Number | 898-686CKH100M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Capacitors | |
Family | Aluminum Capacitors | |
Manufacturer | Illinois Capacitor | |
Series | CKH | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 68µF | |
Tolerance | ±20% | |
Voltage Rating | 100V | |
ESR (Equivalent Series Resistance) | 1.95 Ohm @ 120Hz | |
Lifetime @ Temp. | 2000 Hrs @ 105°C | |
Operating Temperature | -40°C ~ 105°C | |
Polarization | Polar | |
Applications | General Purpose | |
Ripple Current | 300mA | |
Impedance | - | |
Lead Spacing | 0.197" (5.00mm) | |
Size / Dimension | 0.394" Dia (10.00mm) | |
Height - Seated (Max) | 0.688" (17.50mm) | |
Surface Mount Land Size | - | |
Mounting Type | Through Hole | |
Package / Case | Radial, Can | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 686CKH100M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
686CKH100M is in stock for immediate shipping now. We are the distributor of Illinois Capacitor all series components. The condition of 686CKH100M is new and unused, you can buy 686CKH100M Illinois Capacitor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 686CKH100M.
