| Manufacturer Part Number: | 6803332133F |
|---|---|
| Manufacturer: | Dialight |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9060 Pieces |
| Unit Price: | Quote by Email |

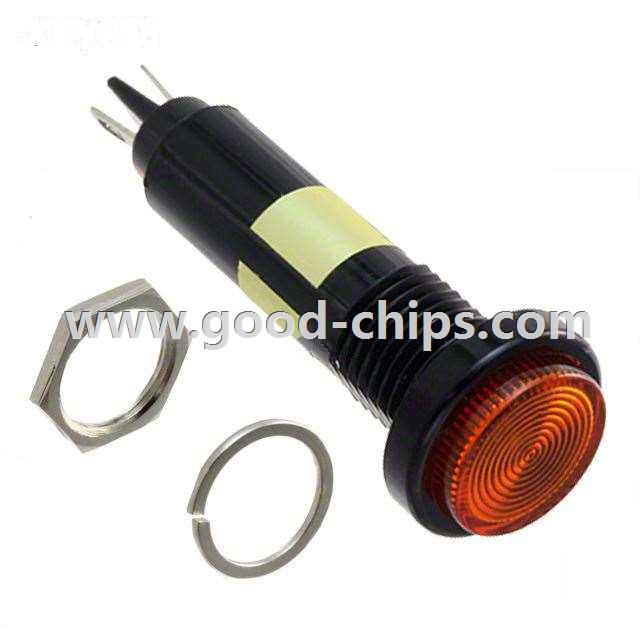

| Description: | LED Panel Indicator Yellow 12V 30mA Solder Lug |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 6803332133F Datasheet |
| Internal Part Number | 898-6803332133F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 680 Series | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Dialight | |
| Series | 680 | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Yellow | |
| Lens Color | - | |
| Lens Transparency | - | |
| Ratings | DC | |
| Voltage | 12V | |
| Current | 30mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.41" (10.41mm) | |
| Lens Style/Size | - | |
| Millicandela Rating | 1455mcd | |
| Wavelength - Peak | - | |
| Viewing Angle | - | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 6803332133F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
6803332133F is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 6803332133F is new and unused, you can buy 6803332133F Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 6803332133F.
