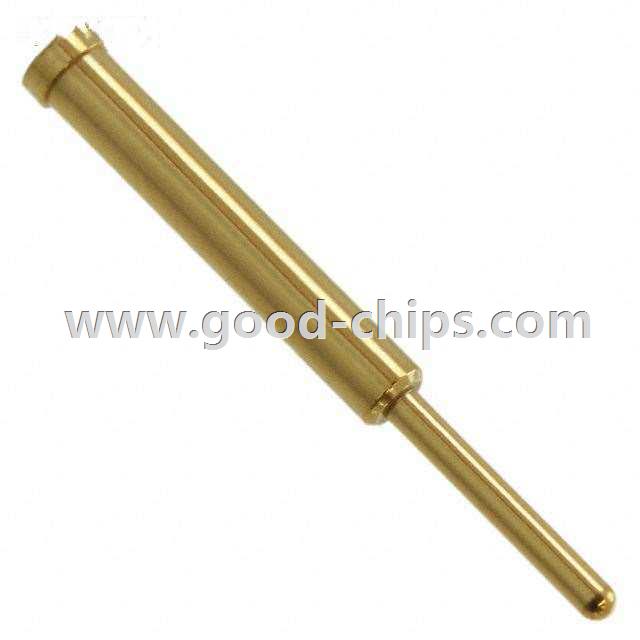

| Manufacturer Part Number: | 6800-0-15-15-34-27-04-0 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 13742 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 6800-0-15-15-34-27-04-0 Datasheet |
| Internal Part Number | 898-6800-0-15-15-34-27-04-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Pin Receptacles | |
| Online Catalog | Mill-Max Manufacturing Corp. | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 6800 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Tail Type | Standard Tail | |
| Termination | Solder | |
| Length - Overall | 0.800" (20.32mm) | |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) | |
| Mounting Hole Diameter | 0.080" (2.03mm) | |
| Pin Hole Diameter | 0.064" (1.63mm) | |
| Flange Diameter | 0.090" (2.29mm) | |
| Tail Diameter | 0.040" (1.02mm) | |
| Socket Depth | 0.300" (7.62mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Board Thickness | - | |
| Insertion Force | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 6800-0-15-15-34-27-04-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
6800-0-15-15-34-27-04-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 6800-0-15-15-34-27-04-0 is new and unused, you can buy 6800-0-15-15-34-27-04-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 6800-0-15-15-34-27-04-0.
