| Manufacturer Part Number: | 66226-035LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

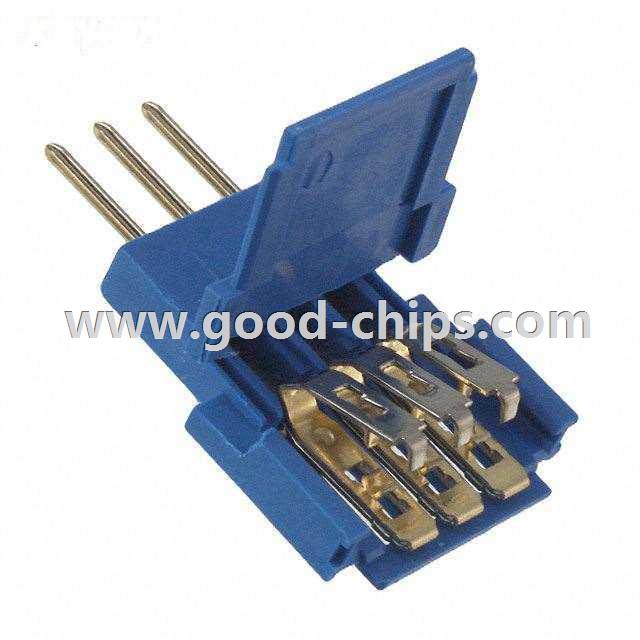

| Description: | 3 Position FFC Connector Header 0.100" (2.54mm) Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 66226-035LF Datasheet |
| Internal Part Number | 898-66226-035LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Flat Flex Connector Overview | |
| Featured Product | FFC and FPC Connectors | |
| PCN Design/Specification | Gold/GXT Plating 23/Mar/2007 Clincher Plating 07/Dec/2011 | |
| PCN Packaging | Tray slots 02/Sept/2011 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | Clincher™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Flat Flex Type | FFC | |
| Mounting Type | Free Hanging (In-Line) | |
| Connector/Contact Type | Header | |
| Number of Positions | 3 | |
| Pitch | 0.100" (2.54mm) | |
| Termination | IDC | |
| FFC, FCB Thickness | 0.33mm | |
| Height Above Board | - | |
| Locking Feature | - | |
| Cable End Type | - | |
| Contact Material | Copper Nickel Alloy | |
| Contact Finish | Gold or Gold, GXT™ | |
| Housing Material | Thermoplastic | |
| Actuator Material | - | |
| Features | - | |
| Voltage Rating | 500V | |
| Operating Temperature | -65°C ~ 105°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 2A | |
| Standard Package | 1,360 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 66226-035LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
66226-035LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 66226-035LF is new and unused, you can buy 66226-035LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 66226-035LF.
