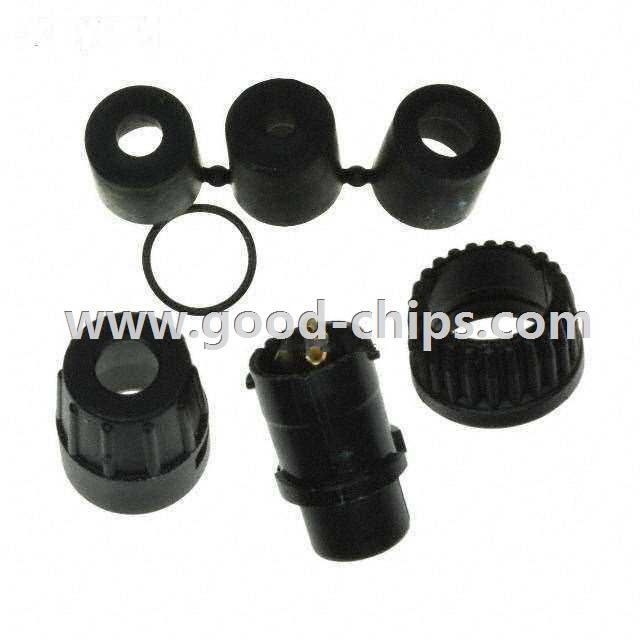

6382-3SG-3DC

6382-3SG-3DC
Manufacturer Part Number:6382-3SG-3DC
Manufacturer:
Product Category:Circular Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:3 Position Circular Connector Plug, Female Sockets Solder Cup Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 6382-3SG-3DC Datasheet
6382-3SG-3DC´s Parameters
Internal Part Number898-6382-3SG-3DC
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductShielded MINI-CON-X® Connectors
CategoryConnectors, Interconnects
FamilyCircular Connectors
ManufacturerConxall/Switchcraft
SeriesMini-Con-X®
PackagingBulk
Part StatusActive
Connector TypePlug, Female Sockets
Number of Positions3
Shell Size - Insert-
Shell Size, MIL-
Mounting TypeFree Hanging (In-Line)
TerminationSolder Cup
Fastening TypeBayonet Lock
OrientationKeyed
Ingress ProtectionWeathertight
Shell Material, FinishNylon
Contact FinishGold
FeaturesBackshell
Contact Finish Thickness-
Current Rating-
Voltage - Rated600V
Operating Temperature-55°C ~ 125°C
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement Part6382-3SG-3DC
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

6382-3SG-3DC is in stock for immediate shipping now. We are the distributor of Switchcraft Inc. all series components. The condition of 6382-3SG-3DC is new and unused, you can buy 6382-3SG-3DC Switchcraft Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 6382-3SG-3DC.
