Manufacturer Part Number: | 637-W15-221-012 |
---|---|
Manufacturer: | EDAC Inc. |
Product Category: | D-Sub Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

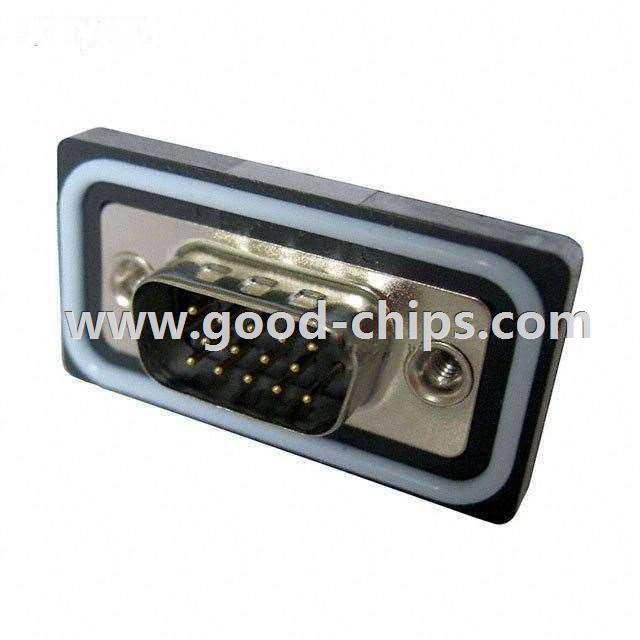

Description: | 15 Position D-Sub, High Density Plug, Male Pins Connector, Through Hole Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 637-W15-221-012 Datasheet |
Internal Part Number | 898-637-W15-221-012 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Waterproof D-Sub, Waterproof USB and Waterproof HDMISeries | |
Video File | EDAC Waterproof DSub & USB Connector | |
Online Catalog | 637 and 638 Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | EDAC Inc. | |
Series | 637 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub, High Density | |
Connector Type | Plug, Male Pins | |
Number of Positions | 15 | |
Number of Rows | 3 | |
Shell Size, Connector Layout | 1 (DE, E) High Density | |
Contact Type | Signal | |
Mounting Type | Through Hole | |
Flange Feature | Housing/Shell (4-40) | |
Termination | Solder | |
Features | - | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | - | |
Current Rating | 3A | |
Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Color | Black | |
Standard Package | 48 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 637-W15-221-012 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
637-W15-221-012 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 637-W15-221-012 is new and unused, you can buy 637-W15-221-012 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 637-W15-221-012.
