| Manufacturer Part Number: | 628-025-228-046 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |

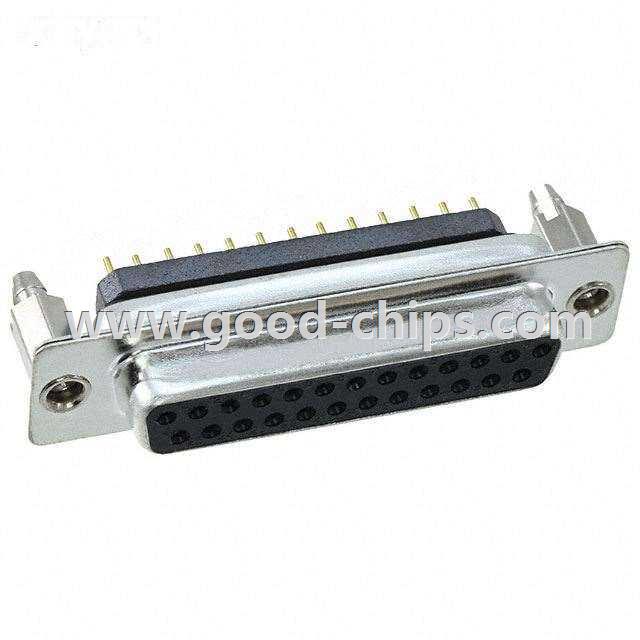

| Description: | 25 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount, Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 628-025-228-046 Datasheet |
| Internal Part Number | 898-628-025-228-046 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 627 and 628 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | EDAC Inc. | |
| Series | 628 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 25 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Shielded | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polyester Thermoplastic | |
| Color | Black | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 628-025-228-046 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
628-025-228-046 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 628-025-228-046 is new and unused, you can buy 628-025-228-046 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 628-025-228-046.
