| Manufacturer Part Number: | 627-W7W-220-012 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9030 Pieces |
| Unit Price: | Quote by Email |

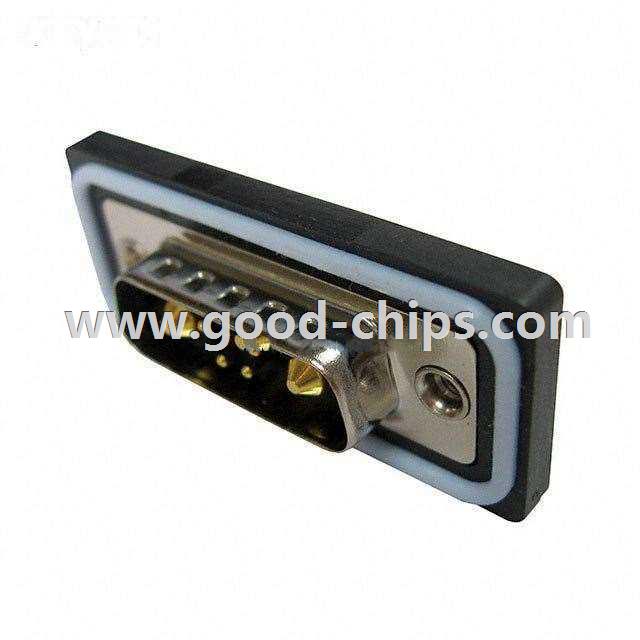

| Description: | 7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector, Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 627-W7W-220-012 Datasheet |
| Internal Part Number | 898-627-W7W-220-012 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Waterproof D-Sub, Waterproof USB and Waterproof HDMISeries | |
| Video File | EDAC Waterproof DSub & USB Connector | |
| Online Catalog | 627 and 628 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | EDAC Inc. | |
| Series | 627 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 7 (5 + 2 Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | |
| Contact Type | Signal and Power | |
| Mounting Type | Through Hole | |
| Flange Feature | Mating Side (4-40) | |
| Termination | Solder | |
| Features | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Standard Package | 42 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 627-W7W-220-012 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
627-W7W-220-012 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 627-W7W-220-012 is new and unused, you can buy 627-W7W-220-012 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 627-W7W-220-012.
