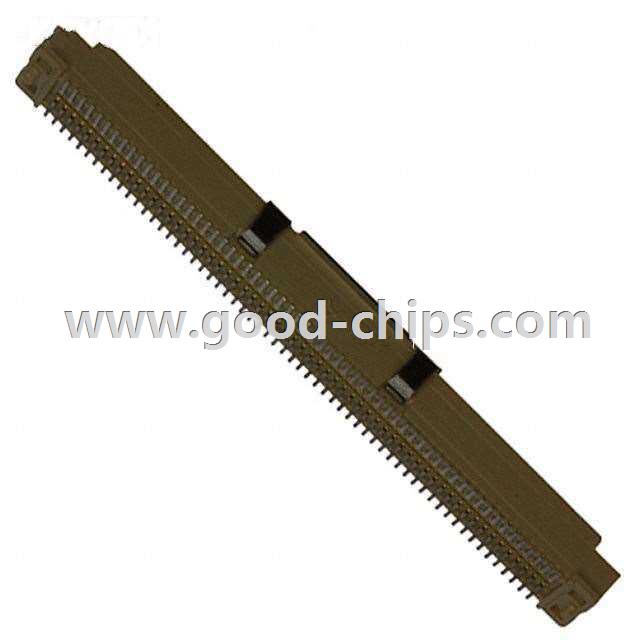

Manufacturer Part Number: | 61083-121402LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 120 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 61083-121402LF Datasheet |
Internal Part Number | 898-61083-121402LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Bergstak Overview | |
Video File | Mezzselect Tool - Another Geek Moment | |
Featured Product | Bergstak® 0.8mm Mezzanine Connectors MezzSelect | |
PCN Design/Specification | BTB Design 21/Feb/2014 | |
PCN Assembly/Origin | BergStak 0.8mm 29/Oct/2011 BergStak 0.8mm 10/May/2012 | |
PCN Packaging | Multiple Devices 02/Feb/2016 Multiple Devices Packaging Illustration 03/Feb/2016 | |
Online Catalog | BergStak®, MezzSelect™ | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Amphenol FCI | |
Series | BergStak®, MezzSelect™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 120 | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 8µin (0.20µm) | |
Mated Stacking Heights | 5mm, 9mm, 13mm | |
Height Above Board | 0.185" (4.70mm) | |
Standard Package | 650 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 61083-121402LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
61083-121402LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 61083-121402LF is new and unused, you can buy 61083-121402LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 61083-121402LF.
