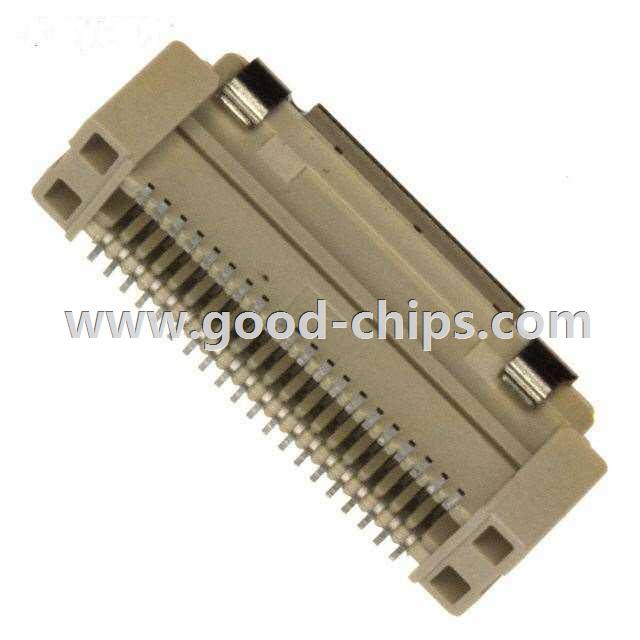

| Manufacturer Part Number: | 61082-042422LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 61082-042422LF Datasheet |
| Internal Part Number | 898-61082-042422LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Bergstak Overview | |
| Video File | Mezzselect Tool - Another Geek Moment | |
| Featured Product | Bergstak® 0.8mm Mezzanine Connectors MezzSelect | |
| PCN Design/Specification | Refinements/Enhancements 11/May/2009 BTB Design 21/Feb/2014 | |
| PCN Assembly/Origin | BergStak 0.8mm 29/Oct/2011 BergStak 0.8mm 10/May/2012 | |
| PCN Other | Bergstak 0.8mm ReceptacleMaterial28/Nov/2014 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Amphenol FCI | |
| Series | BergStak®, MezzSelect™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle, Outer Shroud Contacts | |
| Number of Positions | 40 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Mated Stacking Heights | 9mm, 10mm, 11mm, 12mm | |
| Height Above Board | 0.303" (7.70mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 61082-042422LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
61082-042422LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 61082-042422LF is new and unused, you can buy 61082-042422LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 61082-042422LF.
