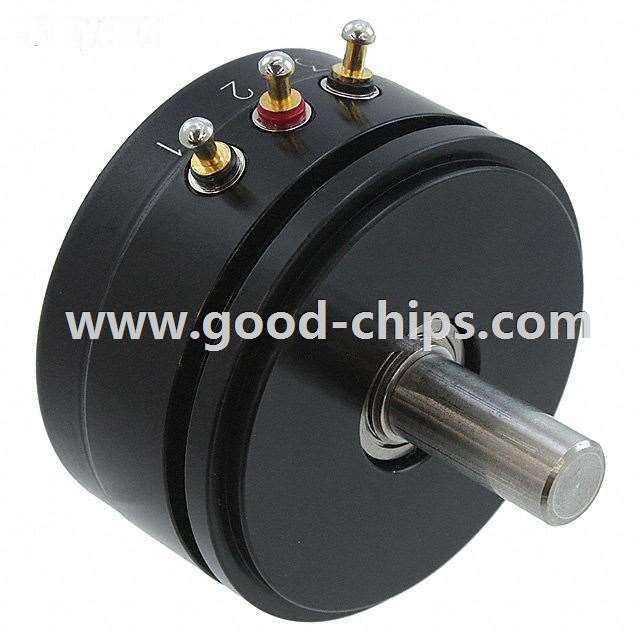

| Manufacturer Part Number: | 6015-1003-030 |
|---|---|
| Manufacturer: | TE Connectivity Potter & Brumfield Relays |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Sensor Rotary Position Round Shaft Solder Turret |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 6015-1003-030 Datasheet |
| Internal Part Number | 898-6015-1003-030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 6015 Series | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | TE Connectivity Measurement Specialties | |
| Series | 6015 | |
| Part Status | Active | |
| For Measuring | Rotary Position | |
| Technology | Resistive | |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous | |
| Linear Range | - | |
| Output | Resistive | |
| Output Signal | Clockwise Increase | |
| Actuator Type | Round Shaft | |
| Linearity | ±0.5% | |
| Resistance (Ohms) | 10k | |
| Resistance Tolerance | ±10% | |
| Voltage - Supply | - | |
| Mounting Type | Custom | |
| Termination Style | Solder Turret | |
| Operating Temperature | -65°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 6015-1003-030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
6015-1003-030 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 6015-1003-030 is new and unused, you can buy 6015-1003-030 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 6015-1003-030.
