| Manufacturer Part Number: | 5HFP 315-R |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Fuses |
| Available Quantity: | 9954 Pieces |
| Unit Price: | Quote by Email |

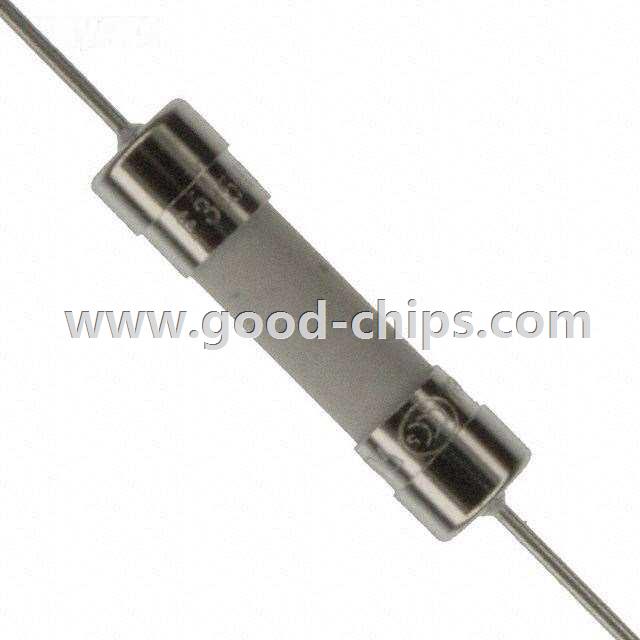

| Description: | FUSE CERAMIC 315MA 250VAC 5X20MM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5HFP 315-R Datasheet |
| Internal Part Number | 898-5HFP 315-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| Featured Product | Power Solutions and Protection | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 5HFP Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Bel Fuse Inc. | |
| Series | 5HFP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Cartridge, Ceramic | |
| Current Rating | 315mA | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | - | |
| Response Time | Fast | |
| Package / Case | 5mm x 20mm (Axial) | |
| Mounting Type | Through Hole | |
| Breaking Capacity @ Rated Voltage | 1.5kA | |
| Melting I²t | 0.05 | |
| Approvals | CCC, CE, CSA, cURus | |
| Operating Temperature | -55°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
| DC Cold Resistance | 0.67 Ohm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5HFP 315-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5HFP 315-R is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of 5HFP 315-R is new and unused, you can buy 5HFP 315-R Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5HFP 315-R.
