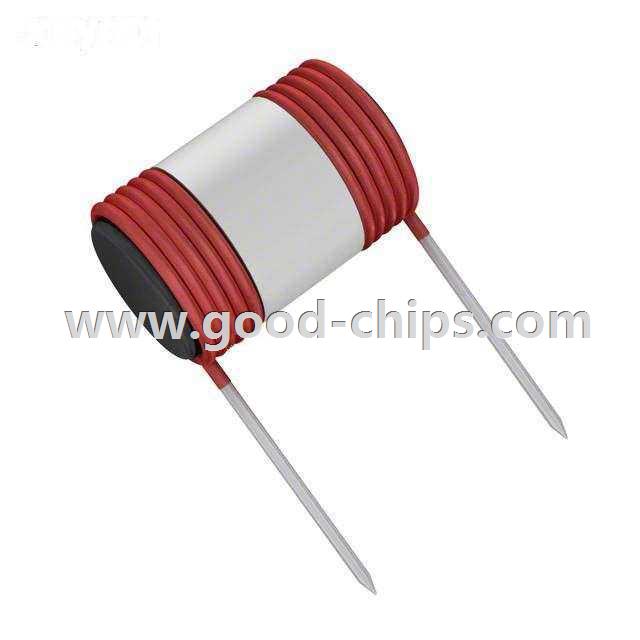

Manufacturer Part Number: | 5HC-10 |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Unshielded Wirewound Inductor 5A 15 mOhm Max Radial |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5HC-10 Datasheet |
Internal Part Number | 898-5HC-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | HC | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±10% | |
Current Rating | 5A | |
Current - Saturation | 18A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 15 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | - | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.640" Dia x 1.125" L (16.26mm x 28.58mm) | |
Height - Seated (Max) | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5HC-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5HC-10 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 5HC-10 is new and unused, you can buy 5HC-10 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5HC-10.
