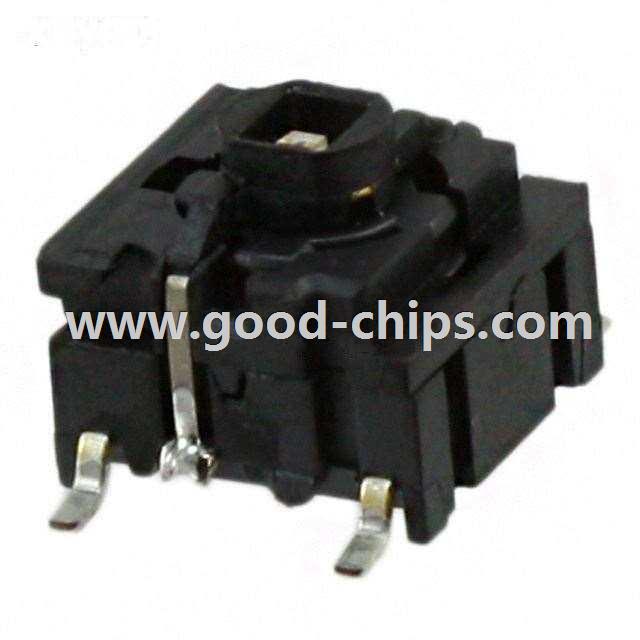

| Manufacturer Part Number: | 5GSH93522 |
|---|---|
| Manufacturer: | MEC Switches |
| Product Category: | Tactile Switches |
| Available Quantity: | 9679 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5GSH93522 Datasheet |
| Internal Part Number | 898-5GSH93522 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switches | |
| 3D Model | 5GSH9.stp 5GSH9XX LED.stp | |
| Online Catalog | Multimec® Series | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | MEC Switches | |
| Series | Multimec® 5 | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Surface Mount | |
| Actuator Height off PCB, from Pins | 6.40mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | Gull Wing | |
| Outline | 10.10mm x 10.10mm | |
| Illumination | Illuminated | |
| Illumination Voltage (Nominal) | 2.2 VDC | |
| Illumination Type, Color | LED, Green | |
| Operating Force | 350gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Sealed - Flux Protection | |
| Actuator Material | Polyphenylene Sulfide (PPS) | |
| Switch Travel | 1.00mm | |
| Mechanical Life | 10,000,000 Cycles | |
| Operating Temperature | -40°C ~ 160°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5GSH93522 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5GSH93522 is in stock for immediate shipping now. We are the distributor of MEC Switches all series components. The condition of 5GSH93522 is new and unused, you can buy 5GSH93522 MEC Switches with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5GSH93522.
