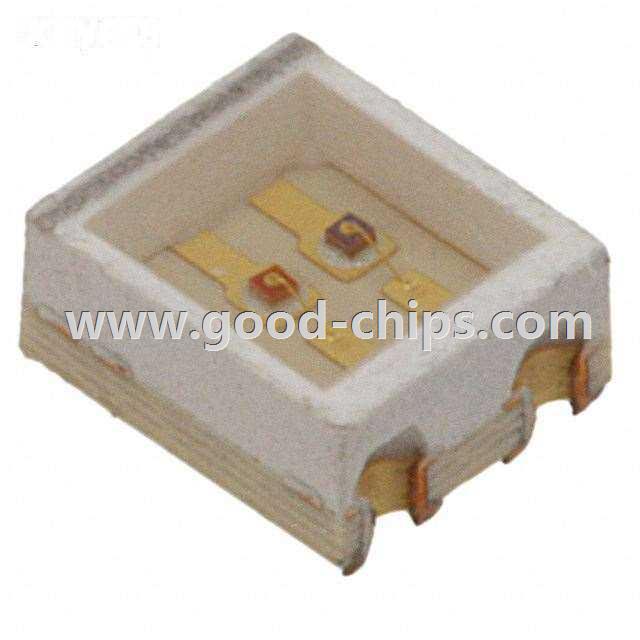

Manufacturer Part Number: | 5977701507F |
---|---|
Manufacturer: | Dialight |
Product Category: | LED Indication - Discrete |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Green, Red 575nm Green, 653nm Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, No Lead |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5977701507F Datasheet |
Internal Part Number | 898-5977701507F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Bi-Color Rectangle with Flat Top 1210 Package Chip LEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Dialight | |
Series | 597 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Green, Red | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | 16mcd Green, 6.3mcd Red | |
Lens Style/Size | Rectangle with Flat Top, 2.30mm x 2.10mm | |
Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red | |
Current - Test | 20mA Green, 20mA Red | |
Viewing Angle | 100° | |
Mounting Type | Surface Mount | |
Wavelength - Dominant | 575nm Green, 653nm Red | |
Wavelength - Peak | 570nm Green, 650nm Red | |
Features | - | |
Package / Case | 4-SMD, No Lead | |
Supplier Device Package | 1210 | |
Size / Dimension | 3.00mm L x 2.50mm W | |
Height (Max) | 1.30mm | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5977701507F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5977701507F is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 5977701507F is new and unused, you can buy 5977701507F Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5977701507F.
