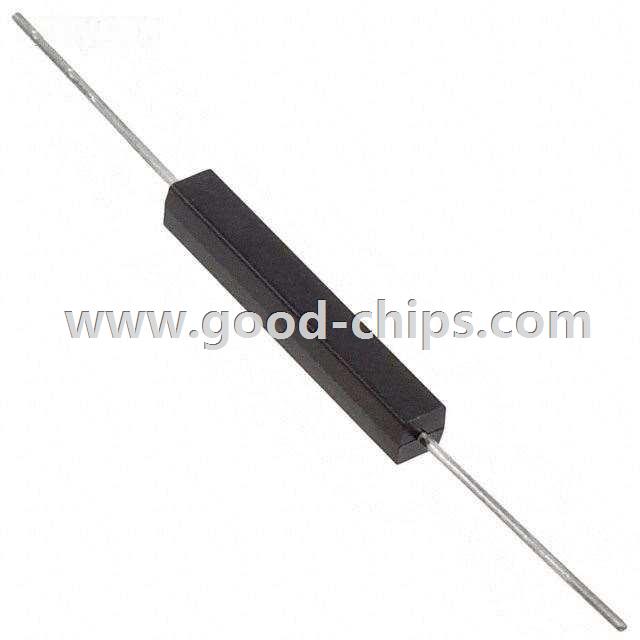

| Manufacturer Part Number: | 59165-1-S-00-A |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9754 Pieces |
| Unit Price: | Quote by Email |
| Description: | Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 59165-1-S-00-A Datasheet |
| Internal Part Number | 898-59165-1-S-00-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
| Online Catalog | 59165 Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Littelfuse Inc. | |
| Series | 59165 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Molded Body | |
| Circuit | SPST-NO | |
| Operate Range | 10 ~ 15AT | |
| Release Range | - | |
| Current - Switching | 350mA (AC), 500mA (DC) | |
| Voltage - Switching AC | 140V | |
| Voltage - Switching DC | 200V | |
| Power - Rated | 10W | |
| Operate Time | 1ms | |
| Release Time | 1ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 1.590" (40.39mm) | |
| Size - Body | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | |
| Height Above Board | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Capacitance | 0.30pF | |
| Current - Carry | 800mA (DC) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 59165-1-S-00-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
59165-1-S-00-A is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 59165-1-S-00-A is new and unused, you can buy 59165-1-S-00-A Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 59165-1-S-00-A.
