Manufacturer Part Number: | 59150-3-T-05-F |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

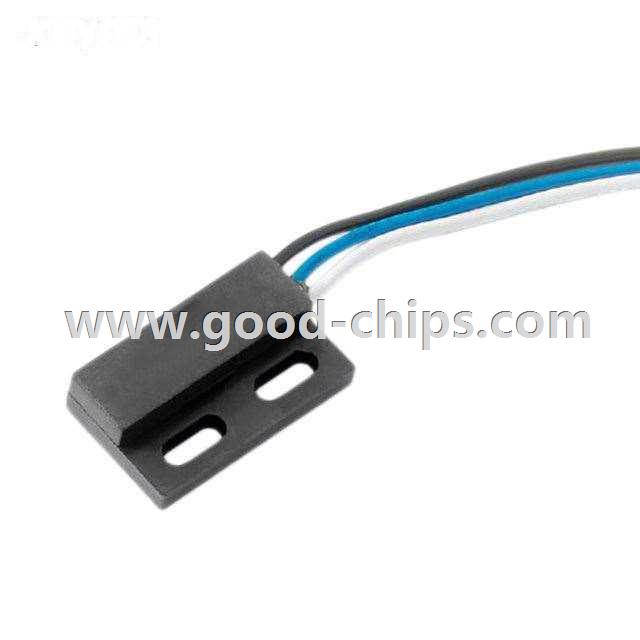

Description: | Magnetic Reed Switch Magnet SPDT Wire Leads Flange Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 59150-3-T-05-F Datasheet |
Internal Part Number | 898-59150-3-T-05-F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Sensor Cable Length Options | |
RoHS Information | RoHS Compliance Survey | |
Category | Sensors, Transducers | |
Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
Manufacturer | Littelfuse Inc. | |
Series | 59150 | |
Part Status | Active | |
Output Type | SPDT | |
Type | Reed Switch | |
Actuator Material | Magnet | |
Termination Style | Wire Leads | |
Frequency | - | |
Voltage - Supply | - | |
Must Operate | 9.00mm | |
Must Release | - | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Package / Case | Flange Mount | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 59150-3-T-05-F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
59150-3-T-05-F is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 59150-3-T-05-F is new and unused, you can buy 59150-3-T-05-F Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 59150-3-T-05-F.
