586

586
Manufacturer Part Number:586
Manufacturer:
Product Category:Barrel - Audio Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

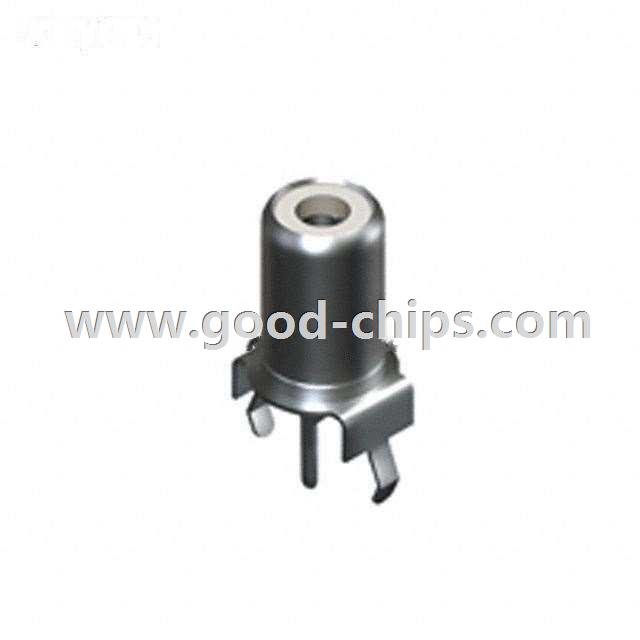

Description:3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 586 Datasheet
586´s Parameters
Internal Part Number898-586
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS Compliance Statement
PCN Design/Specification584, 585, 586 03/Mar/2015
584,585,58619/Mar/2015
CategoryConnectors, Interconnects
FamilyBarrel - Audio Connectors
ManufacturerKeystone Electronics
Series-
PackagingBulk
Part StatusActive
Connector TypePhono (RCA) Jack
GenderFemale
Signal LinesMono
Industry Recognized Mating Diameter3.20mm ID, 9.00mm OD (RCA)
Actual Diameter-
Number of Positions/Contacts2 Conductors, 2 Contacts
Internal Switch(s)Does Not Contain Switch
Mounting TypeThrough Hole
TerminationKinked Pin
ShieldingUnshielded
Features-
Insulation ColorYellow
Voltage - Rated-
Current Rating-
Mating Length/Depth-
Contact Material - PlatingTin
Body MaterialSteel
Body ColorSilver
Includes1 pc - 1 Connector
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part586
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

586 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 586 is new and unused, you can buy 586 Keystone Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 586.
